Lecture 12 Synchronization and mutual exclusion

Section 1 Overview



Yong Xiang, Yu Chen, Guoliang Li, Ju Ren



Spring 2023

Background

  • Independent Process/Thread

    • Does not share resources or state with other processes/threads
    • Deterministic => the result is determined by the input state
    • Reproducible => able to reproduce initial conditions
    • Scheduling order is not important

  • If processes/threads have resource sharing

    • Uncertainty exists
    • Irreproducibility exists
    • Difficult-to-reproduce errors may occur

Background

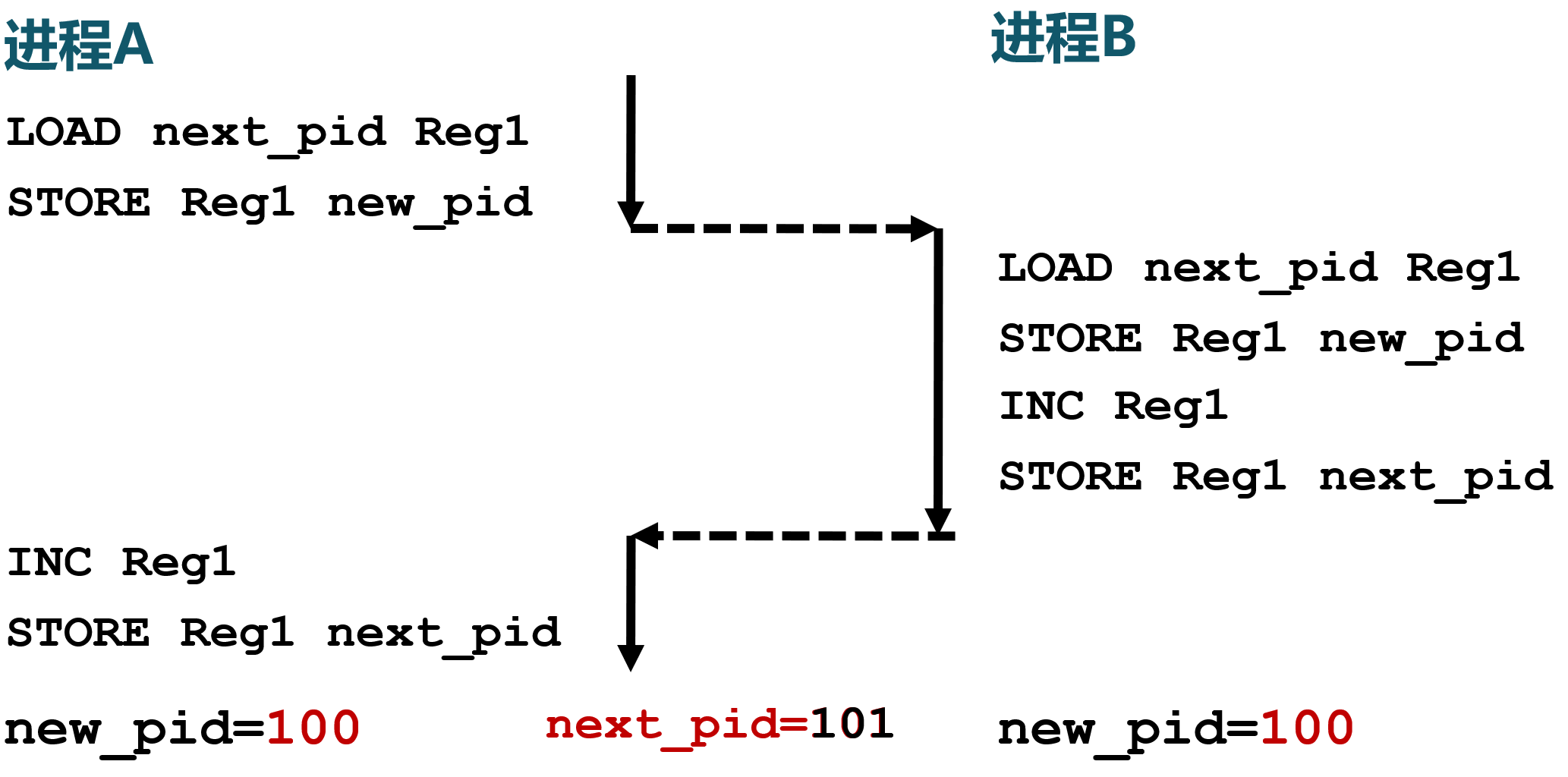

  • Possible errors when forking processes/threads with resource sharing

Background -- Atomic Operation

  • An atomic operation refers to an operation that occurs without any interruption or failure at once
    • It either successfully completes the operation
    • Or the operation is not executed at all
    • There is no partial execution state

The OS needs to utilize synchronization mechanisms to ensure that certain operations are atomic while executing concurrently

Synchronization and mutual exclusion in real life

Example: Coordinating family shopping (using real-life problems to understand operating system synchronization issues)

  • Note the differences between computers and humans

Synchronization and mutual exclusion in real life

  • How to ensure the success and efficiency of coordinating family shopping
    • When there is a need for groceries, one person goes to buy bread
    • Only one person is allowed to go buy bread at most
  • Possible solutions
    • Set a lock and key on the refrigerator
    • Lock the refrigerator and take the key before going to buy bread
  • New problem caused by locking
    • When there are other food items in the refrigerator, others cannot access them

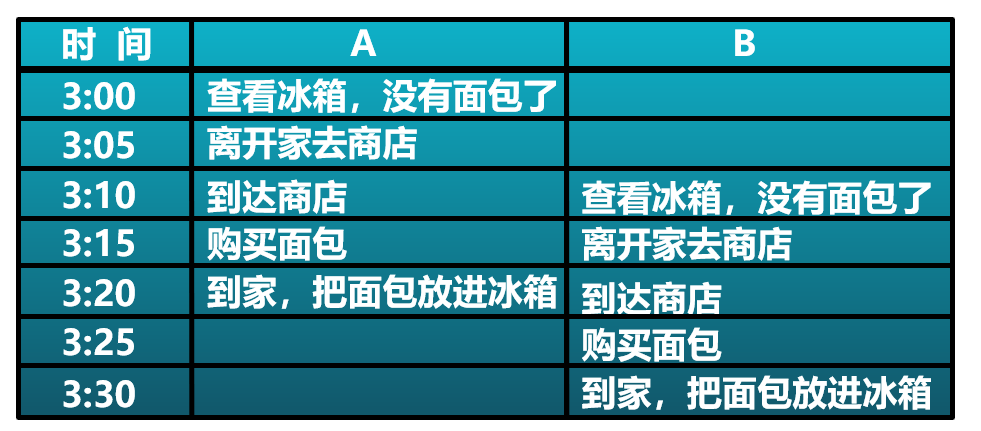

Synchronization and mutual exclusion in real life -- Solution 1

  • Use notes to avoid buying too much bread
    • Leave a note before making the purchase
    • Remove the note after buying
    • When others see the note, they refrain from buying bread
  if (nobread) {
     if (noNote) {
         leave Note;
         buy bread;
         remove Note;
     }
}

Synchronization and mutual exclusion in real life -- Solution 1 -- Analysis

  • Occasionally, buying too much bread may still occur - duplication

    • Before posting the note, there may be others checking the bread and the note

  • The solution intermittently fails

    • Debugging the problem is difficult
    • The actions of the scheduler must be taken into consideration

Synchronization and mutual exclusion in real life -- Solution 2

  • Leaving the note first, then checking the bread and the note
leave Note;
if (nobread) {
   if (noNote) {
        buy bread;
     }
}
remove note;
  • what happens?
    • No one will buy bread

Synchronization and mutual exclusion in real life -- Solution 3

  • Adding a marker to the note to distinguish between different people's notes
    • Now it is possible to leave the note before checking
leave note_2;
if (no note_1) {
    if (no bread) {
      buy bread;
    }
}
remove note_2;

Synchronization and mutual exclusion in real life -- Solution 3

  • Adding a marker to the note to distinguish between different people's notes
    • Now it is possible to leave the note before checking
leave note_1;
if (no note_2) {
    if (no bread) {
      buy bread;
    }
}
remove note_1;

Synchronization and mutual exclusion in real life -- Solution 3

  • Adding a marker to the note to distinguish between different people's notes

    • Now it is possible to leave the note before checking

    • What will happen?

      • It may result in no one buying bread
      • Each person thinks the other will buy bread

Synchronization and mutual exclusion in real life -- Solution 4

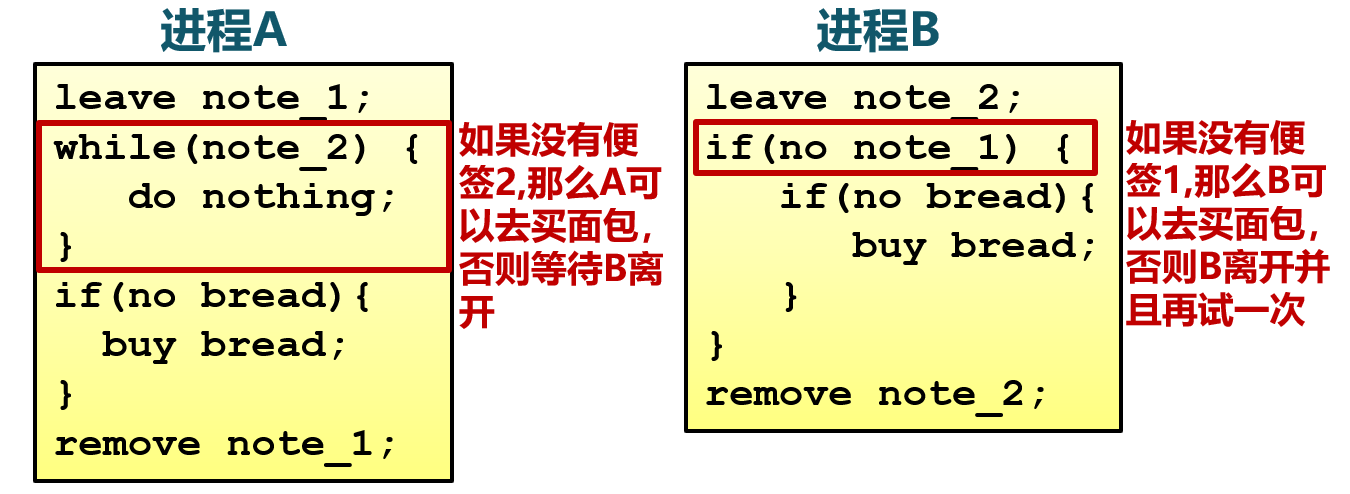

Two people adopt different processing flows

Synchronization and mutual exclusion in real life -- Solution 4

Two people adopt different processing flows

  • Is it effective now?
    • It is effective, but too complex
  • Code for person A and person B is different
    • What if there are more threads?
  • When A is waiting, it cannot do anything else
    • Busy-waiting

Synchronization and mutual exclusion in real life -- Solution 5

  • Implementing a lock using two atomic operations
    • Lock. Acquire()
      • Wait until the lock is released, then acquire the lock
      • If both threads are waiting for the same lock and they both find the lock released simultaneously, only one can acquire the lock
    • Lock. Release()
      • Unlock and wake up any waiting threads

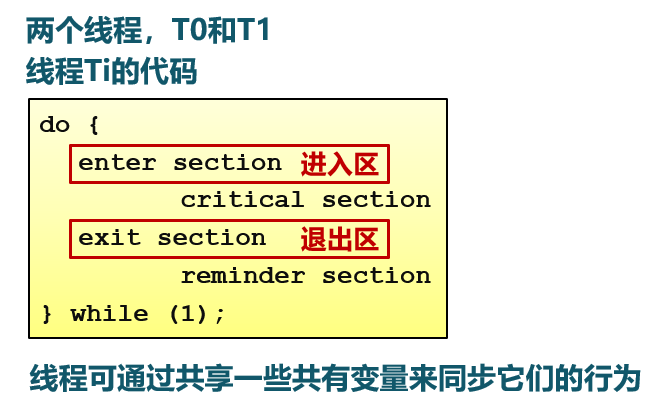

Critical Section

entry section
    critical section
exit section
    remainder section
  • Entry section
    • A section of code that checks if it is possible to enter the critical section
    • If it is possible to enter, set the corresponding "accessing critical section" flag
  • Critical section
    • A section of code in a thread that accesses critical resources and needs to be executed mutually exclusively

Critical Section

entry section
    critical section
exit section
    remainder section
  • Exit section
    • Clear the "accessing critical section" flag
  • Remainder section
    • The remaining part of the code

Critical Section -- Access Rules

entry section
    critical section
exit section
    remainder section
    1. Enter if idle: Any thread can enter the critical section if no other thread is currently in it
    1. Wait if busy: Other threads cannot enter the critical section if there is a thread already inside
    1. Limited waiting: Threads waiting to enter the critical section cannot wait indefinitely
    1. Yield waiting (optional): Threads unable to enter the critical section should release the CPU (e.g., transition to a blocked state)

Methods for synchronization and mutual exclusion

  • Method 1: Disabling hardware interrupts
  • Method 2: Software-based solutions
  • Method 3: Higher-level abstraction methods

Method 1: Disable hardware interrupts

  • By disabling interrupts, there are no context switches, and thus no concurrency

    • Hardware defers interrupt handling until interrupts are re-enabled

    • Modern computer architectures provide instructions to disable interrupts

       local_irq_save(unsigned long flags);
     critical section
 local_irq_restore(unsigned long flags);
  • Entering the critical section: Disable all interrupts and save flags
  • Leaving the critical section: Enable all interrupts and restore flags

Method 1: Disabling hardware interrupts

  • Disadvantages
    • Once interrupts are disabled, threads cannot be stopped
      • The entire system comes to a halt
      • May result in other threads starving
    • The critical section may be lengthy
      • It is impossible to determine the time required to respond to an interrupt (hardware influence may exist)
    • Not suitable for multi-core systems
  • Caution must be exercised when using this method

Method 2: Software-based solution

Method 2: Software-based solution -- Attempt 1

  • Meets the "wait if busy" condition but sometimes fails to meet the "enter if idle" condition
    • If Ti is not in the critical section and Tj wants to continue running, it must wait for Ti to enter the critical section first
    • turn = 0;
      • T0 does not need access
      • T1 needs access and waits indefinitely

Method 2: Software-based solution -- Attempt 2

  • Mutual dependency (thread blind waiting)
  • Does not satisfy the "wait if busy" condition
    • flag[i]=flag[j]=0
// thread Tj
do {
    while (flag[i] == 1) ;
    flag[j] = 1;
    critical section
    flag[j] = 0;
    remainder section
} while(1)

Method 2: Software-based solution -- Attempt 3

  • Meets the "wait if busy" condition but does not meet the "enter if idle" condition
    • flag[i]=flag[j]=1
// thread Tj
do {
    flag[j] = 1;
    while (flag[i] == 1) ;
    critical section
    flag[j] = 0;
    remainder section
} while(1)

Method 2: Software-based solution -- Peterson algorithm

  • Meets the classic software-based solution for mutual exclusion between threads Ti and Tj (1981)
  • "Kong Rong Yielding the Pear"

Method 2: Software-based solution -- Peterson algorithm

flag[i] = True;
turn = j;
while(flag[j] && turn == j);
critical section;
flag[i] = False;
remainder section;

flag[j] = True;
turn = i;
while(flag[i] && turn == i);
critical section;
flag[j] = False;
remainder section;

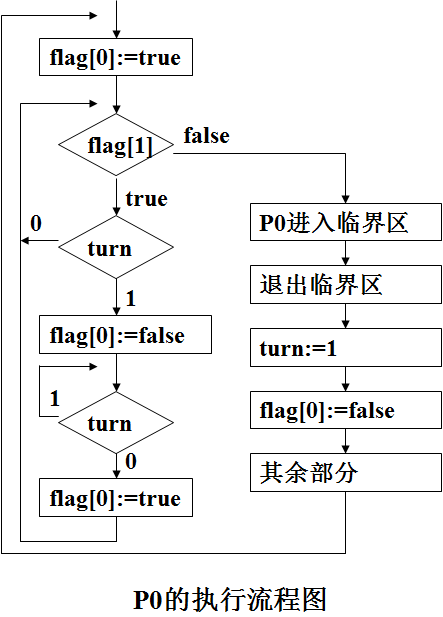

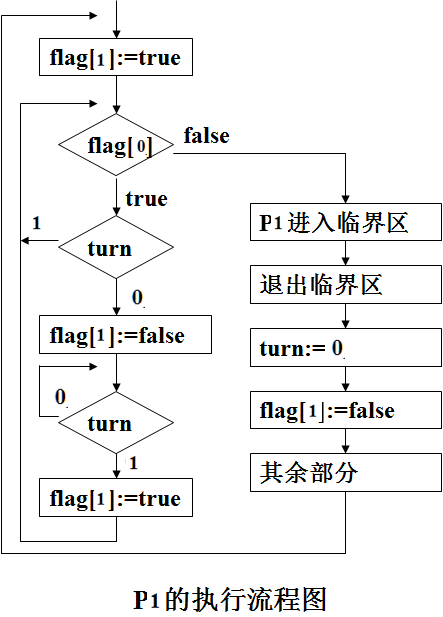

Method 2: Software-based solution -- Dekkers algorithm

do {
   flag[0] = true;// First, P0 raises his hand to indicate that I want to visit
   while(flag[1]) {//Check if P1 has raised his hand
      if(turn==1){// If P1 also raises his hand, then see whose turn it is
          flag[0]=false;// If it is indeed P1's turn, then P0 puts his hand down first (let P1 go first)
          while(turn==1);// As long as it is still time for P1, P0 will not raise its hand and keep waiting
          flag[0]=true;// Wait until P1 is used up (it's P0's turn), and P0 raises its hand again
      }
      flag[1] = false; // As long as you can jump out of the loop, it means that P1 is used up, and you should jump out of the outermost circle of while
   }
   critical section;// access critical section
   turn = 1;// After P0 visits, give the turn to P1, so that P1 can visit
   flag[0]=false;// P0 put down
   remainder section;
} while(true);

Method 2: Software-based solution -- Dekkers algorithm

vs

Method 2: Software-based solution -- N threads

Eisenberg and McGuire

  • A shared "turn" variable and a number of threads arranged in a circular manner.
  • Each thread has a flag indicating its desire to enter the critical section
  • If multiple threads want to enter the critical section, they move forward in order and the turn variable is updated to the next thread's value after each thread completes execution

Method 2: Software-based solution -- N threads

INITIALIZATION:

enum states flags[n -1]; //{IDLE, WAITING, ACTIVE}
int turn;
for (index=0; index<n; index++) {
    flags[index] = IDLE;
}

Method 2: Software-based solution -- N threads

ENTRY PROTOCOL (for Process i):
repeat {//Whether there is a request process from turn to i: if it exists, it will continue to loop until there is no such process, and mark the current process as ACTIVE
    flags[i] = WAITING;//Indicate that you need resources
    index = turn;//whose turn is it
    while (index != i) {// from turn to i take turns to find idle threads
       if (flag[index] != IDLE) index = turn;//turn to i has non-idle blocking
       else index = (index+1) mod n; //Otherwise it is i's turn and jump out
    }
    flags[i] = ACTIVE;//Pi active; other threads may be active
    // Make further judgments on all ACTIVE processes, and judge whether there are other ACTIVE processes besides the current process
    index = 0;//Check if there are other active ones
    while ((index < n) && ((index == i) || (flags[index] != ACTIVE))) {
       index = index+1;
    }//If there is no active later, and it's Pi's turn or turn idle, it's i's turn; otherwise continue to loop
} until ((index >= n) && ((turn == i) || (flags[turn] == IDLE)));
turn = i;//get turn and process

Method 2: Software-based solution -- N threads

EXIT PROTOCOL (for Process i ):

index = turn+1 mod n;//Find one that is not idle
while (flags[index] == IDLE) {
    index = index+1 mod n;
}
turn = index;//Find the one that is not idle and set it to turn; or set it to yourself
flag[i] = IDLE;//end, become idle

Method 3: Higher-level abstraction method

  • Software based solution

    • Complex and involves busy waiting

  • Higher level abstract method

    • Hardware provides some synchronization primitives
      • Disabling interrupts and atomic instructions, etc.
    • The OS provides higher-level programming abstractions to simplify thread synchronization
      • eg: locks, semaphores
      • Using hardware primitives

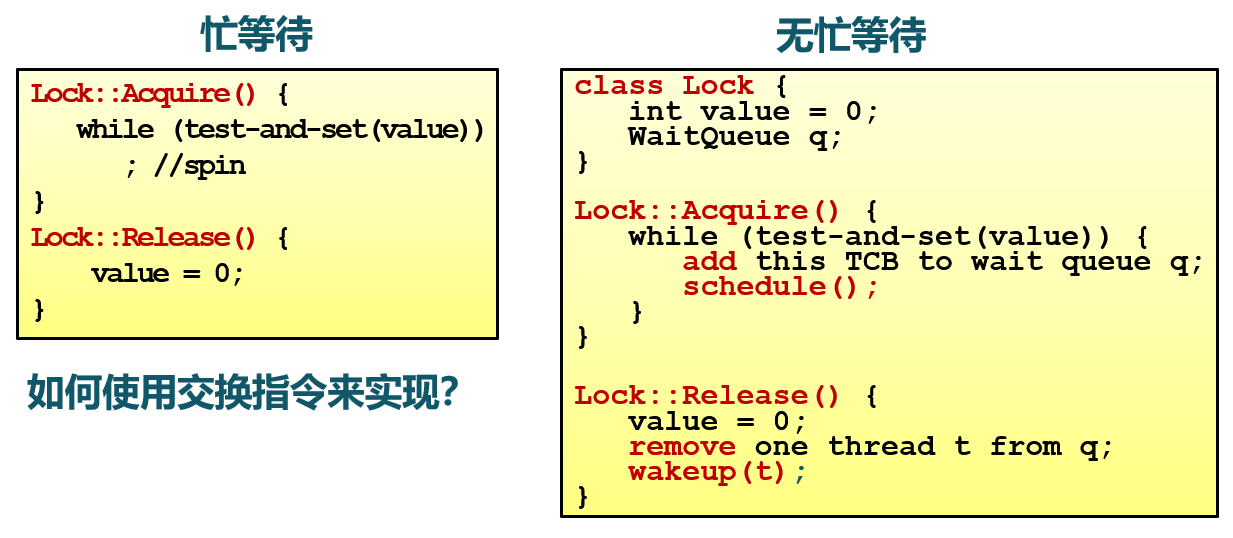

Method 3: Higher-level abstraction method -- Lock

  • A lock is an abstract data structure
    • A binary variable (locked/unlocked)
    • Locks are used to control access to critical sections
    • Lock::Acquire()
      • Waits until the lock is released, then acquires it
    • Lock::Release()
      • Releases the lock and wakes up any waiting threads

Method 3: Higher-level abstraction method -- Lock

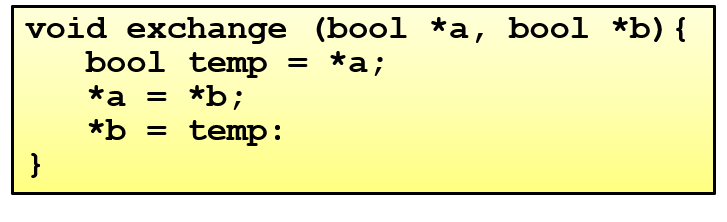

Modern CPUs provide special atomic instructions

  • Atomic instructions
    • Test-and-Set
      • Read a value from a memory location
      • Test if the value is 1 (returns true or false)
      • Set the memory location to 1
        • Enter 0, change to 1, and return 0;
        • Enter 1, keep 1, and return 1;

Method 3: Higher-level abstraction method -- Lock

Modern CPUs provide special atomic instructions

do {
   while(TestAndSet(&lock));
   critical section;
   lock = false;
   remainder section;
} while (true)

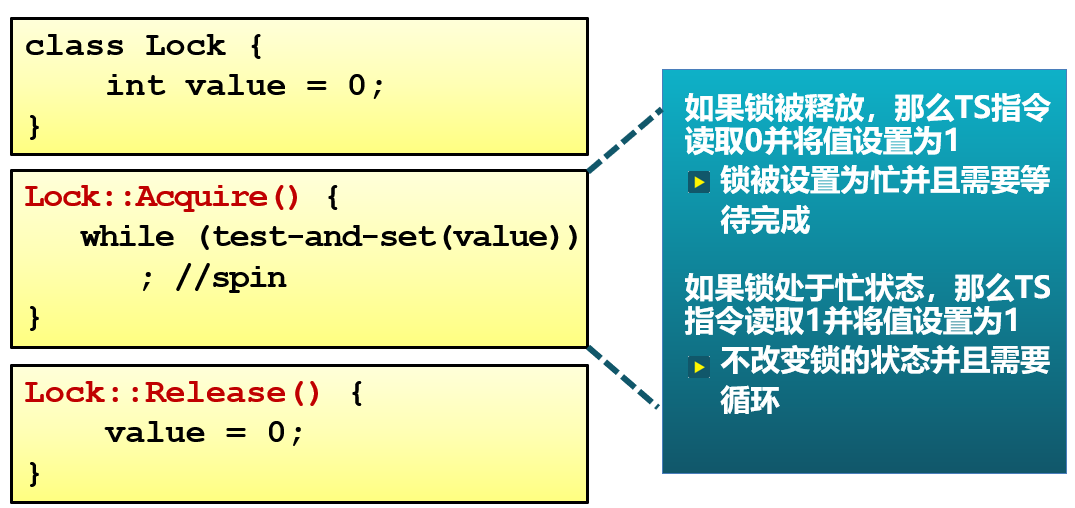

Method 3: Higher-level abstraction method -- Lock

Modern CPUs provide special atomic instructions

do {
   while(TestAndSet(&lock));
   critical section;
   lock = false;
   remainder section;
} while (true)

lock(): while(TestAndSet(&lock));
critical section;
unlock(): lock=false;

Method 3: Higher-level abstraction method -- Lock

  • Atomic operation: Compare and Swap (CaS)
bool compare_and_swap(int *value, int old, int new) {
    if(*value==old) {
       *value = new;
       return true; }
    return false;
}

int lock = 0; // Initially the lock is free
while(!compare_and_swap(&lock,0,1)); // lock lock
critical section;
lock=0; // unlock unlock
remainder section;

Method 3: Higher-level abstraction method -- Lock

  • Atomic operation: Compare and Swap (CaS)
  • ABA problem:
    • value = 100;
    • Thread1: value - 50; //Successful value=50
    • Thread2: value - 50; //Blocked
    • Thread3: value + 50; //Successful value=50
    • Thread2: Retry successful
  • Solution idea: Add a version number (timestamp)
    • (100,1); (50,2); (100,3)

Method 3: Higher-level abstraction method -- Lock

Implementing spinlocks using the Test-and-Set (TaS) instruction

  • Threads consume CPU time while waiting

Method 3: Higher-level abstraction method -- Lock

Busy-wait locks vs. waiting locks

Method 3: Higher-level abstraction method -- Lock

  • Advantages
    • Applicable to any number of thread synchronization in single processors or shared-memory multiprocessors
    • Simple and easy to prove
    • Supports multiple critical sections
  • Disadvantages
    • Busy waiting consumes processor time
    • May result in starvation
      • Multiple waiting threads when a thread exits the critical section
    • Possible deadlock: Threads waiting for each other, unable to proceed

Summary

  • Three commonly used synchronization implementation methods
    • Disabling interrupts (for single processors only)
    • Software-based methods (complex)
    • Locks as a higher-level synchronization abstraction
      • Hardware atomic instructions (applicable to single or multiprocessor systems)
      • Locks can be used to achieve mutual exclusion

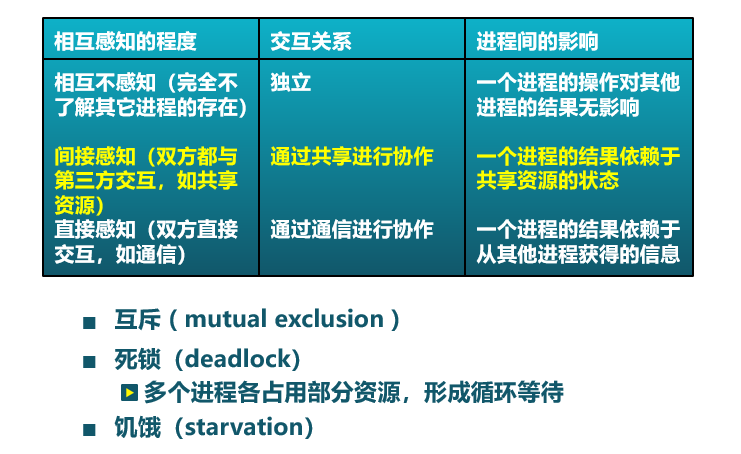

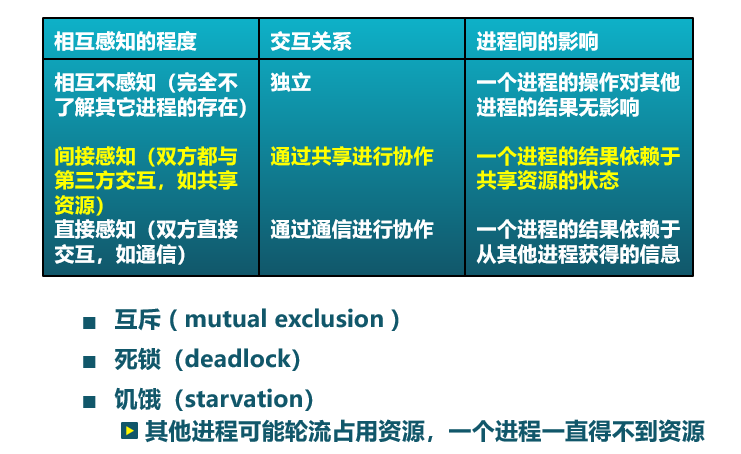

--- ### Interaction between progress/thread: degree of mutual awareness ![w:900](figs/relations-1.png) --- ### Interaction between progress/thread: degree of mutual awareness ![w:900](figs/relations-2.png) --- ### Interaction between progress/thread: degree of mutual awareness ![w:900](figs/relations-3.png)

--- ### Method 3: More advanced abstract method -- lock (lock) - Atomic operation: exchange instruction CaS (Compare and Swap) ``` bool compare_and_swap(int *value, int old, int new) { if(*value==old) { *value = new; return true; } return false; } ``` ``` lock(): while(!compare_and_swap(&lock,0,1)); critical section; unlock(): lock=0; ```

What is CAS? How should the ABA problem be understood? https://zhuanlan.zhihu.com/p/139635112 https://www.zhihu.com/question/23281499/answer/24112589 Regarding the ABA problem, I thought of an example: when you are very thirsty, you find a cup full of water, and you drink it up. Then refill the glass with water. Then you leave, and when the real owner of the glass comes back and sees that the glass is still full of water, of course he doesn't know if someone has drunk it and refilled it. One strategy for a solution to this problem is to assume that an automated recorder records each pour, so the owner can tell when she returns if a refill has occurred since she left. This is also the strategy currently used to solve the ABA problem.

### Method 3: More advanced abstract method -- lock (lock) Modern CPU architectures provide some special atomic operation instructions - Atomic operation instructions - exchange command (exchange) - swap two values in memory ![bg right:50% 100%](figs/exchange.png)
