Lecture 2 Introduction to Practice and Experiments

Section 4 Practice: Bare Metal Program -- LibOS



Yong Xiang, Yu Chen, Guoliang Li, Ju Ren



Spring 2024

Outline

1. Objectives and Ideas

  1. Requirements
  2. Practice Steps
  3. Code Structure
  4. Memory Layout
  5. Startup Process Verification based on GDB
  6. Function Calls
  7. LibOS Initialization
  8. SBI Calls

Objectives of the LibOS Experiment

Bare Metal Program: an OS-type program that is independent on OS

  • Build execution environment for applications
    • Keep applications isolated from hardware
    • Simplify the difficulty and complexity of applications accessing hardware
  • Execution Environment: A multi-level software and hardware system responsible for providing corresponding functions and resources for applications.

History of LibOS

During 1949-1951, J. Lyons and Co. (a British restaurant chain, food manufacturing, and hotel conglomerate) firstly introduced the EDSAC computer (manufactured by the University of Cambridge) into business, jointly designed and implemented the LEO I 'Lyons Electronic Office' hardware and software system

History of LibOS -- Subroutine

  • David Wheeler, who participated in the EDSAC project, proposed the concept of subroutine – Wheeler Jump
  • With the convenient and effective concept and the subroutine calling mechanism, software developers developed a large number of system subroutine libraries on EDSAC and subsequent LEO computers, forming the earliest OS prototype.

General idea of LibOS

  • Compilation: Compile the bare-metal programs by setting the compiler
  • Construction: Build the stack of the bare metal program and the service request interface of SBI (Supervisor Binary Interface)
  • Execution: Initialize the OS starting address and execution environment

Outline

  1. Objectives and Ideas

2. Requirements

  1. Practice Steps
  2. Code Structure
  3. Memory Layout
  4. Startup Process Verification based on GDB
  5. Function Calls
  6. LibOS Initialization
  7. SBI Calls

Understand the execution process of LibOS

  • Can write/compile/run bare metal programs
  • Understand function calls based on bare metal programs
  • Understand assembly code and pseudo code
  • Understand embedded assembly code
  • Preliminarily understand SBI calls

Master the basic concepts

  • Can write the Trilobite OS!
    • What is ABI (Application Binary Interface)?
    • What is SBI (Supervisor Binary Interface)?

Note: Trilobita is the most representative ancient animal in the Cambrian Period

Analyze the Execution Details

  • Understanding functions at the machine level
    • Registers
    • Function call/return
    • Function enter/exit
    • Function prologue/epilogue

OS is not always the bottom-layer software

  • Why?

Outline

  1. Objectives and Ideas
  2. Requirements

3. Practice Steps

  1. Code Structure
  2. Memory Layout
  3. Startup Process Verification based on GDB
  4. Function Calls
  5. LibOS Initialization
  6. SBI Calls

Practice Steps

  • Build the development and experiment environment
  • Remove the standard library dependencies
  • Support function call
  • Complete output and shutdown using the SBI services

Understand the memory space and stack of running programs

Steps

git clone https://github.com/rcore-os/rCore-Tutorial-v3.git
cd rCore-Tutorial-v3
git checkout ch1

cd os
make run

Results of the

[RustSBI output]
Hello, world!
.text [0x80200000, 0x80202000)
.rodata [0x80202000, 0x80203000)
.data [0x80203000, 0x80203000)
boot_stack [0x80203000, 0x80213000)
.bss [0x80213000, 0x80213000)
Panicked at src/main.rs:46 Shutdown machine!

Besides displaying "Hello, world!", there are some additional information. Finally, the machine shuts down .

Outline

  1. Objectives and Ideas
  2. Requirements
  3. Practice Steps

4. Code Structure

  1. Memory Layout
  2. Startup Process Verification based on GDB
  3. Function Calls
  4. LibOS Initialization
  5. SBI Calls

Code structure of LibOS

./os/src
Rust 4 Files 119 Lines
Assembly 1 Files 11 Lines

├── bootloader (implemented by the SBI running at the M privilege level. We use RustSBI in this project)
│ ├── rustsbi-k210.bin (precompiled binary version that can run on the k210 development board)
│ └── rustsbi-qemu.bin (precompiled binary version that can run on QEMU)

LibOS code structure

├── os (our kernel implementation is placed in the os directory)
│ ├── Cargo.toml (some configurations for the kernel implementation)
│ ├── Makefile
│ └── src (the kernel source code is placed in the os/src directory)
│ ├── console.rs (to further encapsulate the SBI interface of printing characters to achieve more powerful formatted output)
│ ├── entry.asm (a piece of assembly code to set the kernel execution environment)
│ ├── lang_items.rs (some semantic items we need to provide to the Rust compiler, currently contains the processing logic when the kernel panics)
│ ├── linker-qemu.ld (the linker script that controls the kernel memory layout to make the kernel run on the qemu virtual machine)
│ ├── main.rs (the main function of the kernel)
│ └── sbi.rs (call the SBI interface provided by the underlying SBI implementation)

Outline

  1. Objectives and Ideas
  2. Requirements
  3. Practice Steps
  4. Code Structure

5. Memory Layout

  1. Startup Process Verification based on GDB
  2. Function Calls
  3. LibOS Initialization
  4. SBI Calls

App/OS Memory Layout

BSS Segment

  • Block Started by Symbol (BSS)
  • BSS segement usually refers to a piece of memory used to store uninitialized global variables in the program
  • belongs to static memory allocation

Data Segment

  • usually refers to a piece of memory used to store initialized global variables in the program
  • belongs to static memory allocation

Text Segment

  • Code segment (code segment/text segment) refers to a piece of memory that stores executive code
  • fixed memory size, usually read-only
  • It's possible to contain some read-only constant variables

Heap

  • used for dynamic allocation, can be dynamically expanded or reduced
  • The program calls functions such as malloc to allocate new memory that is dynamically added to the heap
  • The program calls functions such as free to remove memory from the heap

Stack

  • A piece of memory to store the local variable temporarily created by the program
  • When a function is called, its parameters and return value will also be placed on the stack
  • Due to the first-in last-out feature of the stack, the stack is particularly convenient for preserving/restoring the current execution state

Stack

The stack can be regarded as a memory area for registering and exchanging temporary data

Difference between OS programming and application programming: OS programming requires to understand the physical memory structure on the stack and the machine-level content (related registers and instructions).

Memory Layout Customization at Link Time

# os/src/linker-qemu.ld
OUTPUT_ARCH(riscv)
ENTRY(_start)
BASE_ADDRESS = 0x80200000;

SECTIONS
{
     . = BASE_ADDRESS;
     skernel = .;

     text = .;
     .text : {
       *(.text.entry)

Memory Layout Customization at Link Time

     .bss : {
         *(.bss.stack)
         sbss = .;
         *(.bss.bss.*)
         *(.sbss.sbss.*)

BSS: Block Started by Symbol
SBSS: small bss, near data

Generate Kernel Binary Image

Generate Kernel Binary Image

rust-objcopy --strip-all \
target/riscv64gc-unknown-none-elf/release/os \
-O binary target/riscv64gc-unknown-none-elf/release/os.bin

Outline

  1. Objectives and Ideas
  2. Requirements
  3. Practice Steps
  4. Code Structure
  5. Memory Layout

6. Startup Process Verification based on GDB

  1. Function Calls
  2. LibOS Initialization
  3. SBI Calls

Verify the Startup Process using GDB

qemu-system-riscv64 \
     -machine virt \
     -nographic \
     -bios ../bootloader/rustsbi-qemu.bin\
     -device loader,file=target/riscv64gc-unknown-none-elf/release/os.bin,addr=0x80200000 \
     -s -S

riscv64-unknown-elf-gdb \
     -ex 'file target/riscv64gc-unknown-none-elf/release/os' \
     -ex 'set arch riscv:rv64' \
     -ex 'target remote localhost:1234'
[GDB output]
0x0000000000001000 in ?? ()

Outline

  1. Objectives and Ideas
  2. Requirements
  3. Practice Steps
  4. Code Structure
  5. Memory Layout
  6. Startup Process Verification based on GDB

7. Function Calls

  1. LibOS Initialization
  2. SBI Calls

The support of compilation principle for function calls

call/return pseudo-instructions

Directives Basic instructions Meaning
ret jalr x0, x1, 0 function return
call offset auipc x6, offset[31:12]; jalr x1, x6, offset[11:0] function call

auipc (add upper immediate to pc): used to construct a PC-relative address by adding a U-type immediate value. The lower 12 bits are filled with 0, and the upper 20 bits are used as U-type immediate data to create a 32-bit offset. This offset is then added to the current PC value, and the resulting value is saved in register x1.

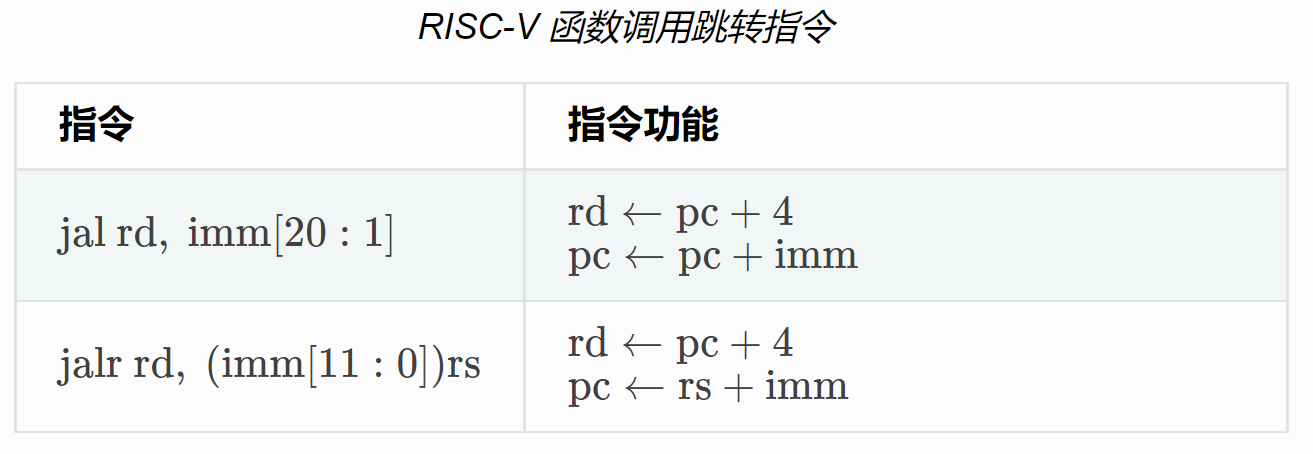

Function Call Jump Instructions

The pseudo-instruction, ret, is translated as jalr x0, 0(x1), which means jumping to the address saved by the register ra (i.e., x1).
Documentation of RISC-V Assembly

call/return pseudo-instructions

pseudo-instructions Basic instructions Meaning
ret jalr x0, x1, 0 function return
call offset auipc x6, offset[31:12]; jalr x1, x6, offset[11:0] function call

The core mechanisms of function call

  • When the function is called, saving the return address and jumping by the call pseudo-instruction;
  • When the function returns, returning to the next instruction before the jump through the ret pseudo-instruction to continue execution

Function calling convention

The function calling convention stipulates how to implement the function call of a certain programming language on a certain instruction set architecture, including:

  • How to pass the input parameters and return values of the function;
  • The division of caller/callee preserved registers in the function call context;
  • Other methods of using registers in the function call process.

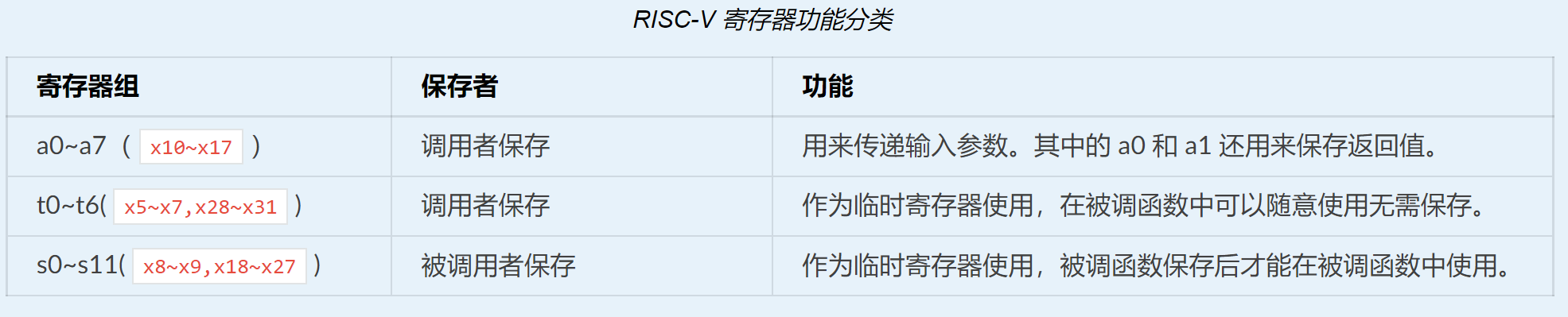

RISC-V Function Calling Convention: call parameters and transfer return values

  • RISC-V32: If the return value is 64bit, use a0~a1 to place it
  • RISC-V64: If the return value is 64bit, use a0 to place it

Risc-V Function Calling Convention: Stack Frame

RISC-V function calling convention: Stack Frame

Stack Frames

return address *
previous fp
saved registers
local variables
…
return address fp register
previous fp (pointed to *)
saved registers
local variables
… sp register

RISC-V Function Calling Convention: Stack Frame

  • Stack frames may have different sizes and content, but the overall structure is similar
  • Each stack frame starts with the return value of this function and the fp value of the previous function
  • The sp register always points to the bottom of the current stack frame
  • The fp register always points to the top of the current stack frame

RISC-V Function Calling Convention: ret Instruction

  • When the ret instruction is executed, the following pseudo-code adjusts the stack pointer and PC:
pc = return address
sp = fp + ENTRY_SIZE
fp = previous fp

RISC-V Function Calling Convention: Function Structure

Function structure: prologue, body part and epilogue

  • Prologue is to preserve the execution status of the program (preserve the register with return address and FP register)

  • Epilogue is to restore the preserved execution status of the program after the execution of a function (jump to the preserved return address and restore the preserved FP register)

RISC-V Function Calling Convention: Function Structure

Function structure: prologue, body part and epilogue

.global sum_then_double
sum_then_double:
addi sp, sp, -16 # prologue
sd ra, 0(sp)

call sum_to # body part
li t0, 2
mul a0, a0, t0

ld ra, 0(sp) # epilogue
addi sp, sp, 16
ret

RISC-V Function Calling Convention: Function Structure

Function structure: prologue, body part and epilogue

.global sum_then_double
sum_then_double:

call sum_to # body part
li t0, 2
mul a0, a0, t0

ret

Q: what's the difference between the above code and the code on the previous page?

Outline

  1. Objectives and Ideas
  2. Requirements
  3. Practice Steps
  4. Code Structure
  5. Memory Layout
  6. Startup Process Verification based on GDB
  7. Function Calls

8. LibOS Initialization

  1. SBI Calls

Allocate and Use the Startup Stack

Allocate and use the startup stack Document of RISC-V assembly

# os/src/entry.asm
     .section.text.entry
     .globl_start
_start:
     la sp, boot_stack_top
     call rust_main

     .section .bss.stack
     .globl boot_stack
boot_stack:
     .space 4096 * 16
     .globl boot_stack_top
boot_stack_top:

Allocate and Use the Startup Stack

# os/src/linker-qemu.ld
.bss : {
     *(.bss.stack)
     sbss = .;
     *(.bss.bss.*)
     *(.sbss.sbss.*)
}
ebss = .;

In the linker script linker.ld, the .bss.stack section will eventually be combined into the .bss segment
The .bss segment generally places data that needs to be initialized to zero

Transfer of Control: ASM --> Rust/C

Transfer control to Rust code, the entry point is the rust_main function in main.rs

// os/src/main.rs
pub fn rust_main() -> ! {
     loop {}
}
  • fn keyword: function; pub keyword: externally visible, public
  • loop keyword: loop

Clear the bss Segment

Clear the bss segment (uninitialized data segment)

pub fn rust_main() -> ! {
     clear_bss(); //call bss clear function clear_bss()
}
fn clear_bss() {
     extern "C" {
         fn sbss(); //start address of bss segment
         fn ebss(); //end address of bss segment
     }
     //Clear the memory space of [sbss..ebss]
     (sbss as usize..ebss as usize).for_each(|a| {
         unsafe { (a as *mut u8).write_volatile(0) }
     });
}

Outline

  1. Objectives and Ideas
  2. Requirements
  3. Practice Steps
  4. Code Structure
  5. Memory Layout
  6. Startup Process Verification based on GDB
  7. Function Calls
  8. LibOS Initialization

9. SBI Calls

SBI service interface

Print Hello world! to the screen

  • SBI service interface
    • Supervisor Binary Interface
    • Services provided by lower-level software to the OS
  • RustSBI
    • Basic SBI services implementation
    • Follow the SBI calling convention

SBI Service Number

// os/src/sbi.rs
const SBI_SET_TIMER: usize = 0;
const SBI_CONSOLE_PUTCHAR: usize = 1;
const SBI_CONSOLE_GETCHAR: usize = 2;
const SBI_CLEAR_IPI: usize = 3;
const SBI_SEND_IPI: usize = 4;
const SBI_REMOTE_FENCE_I: usize = 5;
const SBI_REMOTE_SFENCE_VMA: usize = 6;
const SBI_REMOTE_SFENCE_VMA_ASID: usize = 7;
const SBI_SHUTDOWN: usize = 8;
  • usize machine word-sized unsigned int

Assembly-level SBI Call

// os/src/sbi.rs
#[inline(always)] //Always expand the function
fn sbi_call(which: usize, arg0: usize, arg1: usize, arg2: usize) -> usize {
     let mut ret; // modifiable variable ret
     unsafe {
         asm!(//embedded assembly
             "ecall", //Switch to a higher privilege-level machine instruction
             inlateout("x10") arg0 => ret, //SBI arg0& return value
             in("x11") arg1, //SBI arg1
             in("x12") arg2, //SBI arg2
             in("x17") which, //SBI number
         );
     }
     ret // return ret value
}

SBI Calls: Output Characters

Print a character on the screen

// os/src/sbi.rs
pub fn console_putchar(c: usize) {
     sbi_call(SBI_CONSOLE_PUTCHAR, c, 0, 0);
}

Formatted output implementation

  • Write a println! macro based on console_putchar

SBI Call: Shutdown

// os/src/sbi.rs
pub fn shutdown() -> ! {
     sbi_call(SBI_SHUTDOWN, 0, 0, 0);
     panic!("It should shutdown!");
}
  • panic! and println! are macros (like C macro), and ! means macro

Handle Error Panic Gracefully

#[panic_handler]
fn panic(info: &PanicInfo) -> ! { //PnaicInfo is a structure type
     if let Some(location) = info.location() { //Does the error location exist?
         println!(
             "Panicked at {}:{} {}",
             location.file(), //error file name
             location.line(), //The number of line in the error file
             info.message().unwrap() //error information
         );
     } else {
         println!("Panicked: {}", info. message(). unwrap());
     }
     shutdown() //shutdown
}

LibOS Full Features

Handle panics gracefully

pub fn rust_main() -> ! {
     clear_bss();
     println!("Hello, world!");
     panic!("Shutdown machine!");
}

output:

[RustSBI output]
Hello, world!
Panicked at src/main.rs:26 Shutdown machine!

Summary

  • Knowledge points that need to be mastered in the practice of constructing various OS (principles & implementation)
  • Understand the relationship among Compiler/OS/Machine
  • Know the process from machine startup to execute an application to print out strings
  • Can write Trilobita OS

https://blog.51cto.com/onebig/2551726 (In-depth understanding of computer systems) bss segment, data segment, text segment, heap (heap) and stack (stack)

https://blog.csdn.net/zoomdy/article/details/79354502 RISC-V Assembly Programmer's Manual https://shakti.org.in/docs/risc-v-asm-manual.pdf https://github.com/riscv-non-isa/riscv-asm-manual/blob/master/riscv-asm.md
