Lecture 6 Virtual Memory Management

Outline

1. The demand for Virtual Memory Technology

2. Memory Overlay
3. Memory Swapping
4. Basic Concepts of Virtual Memory
5. Page Fault

Background: Why we need Virtual Memory Technology

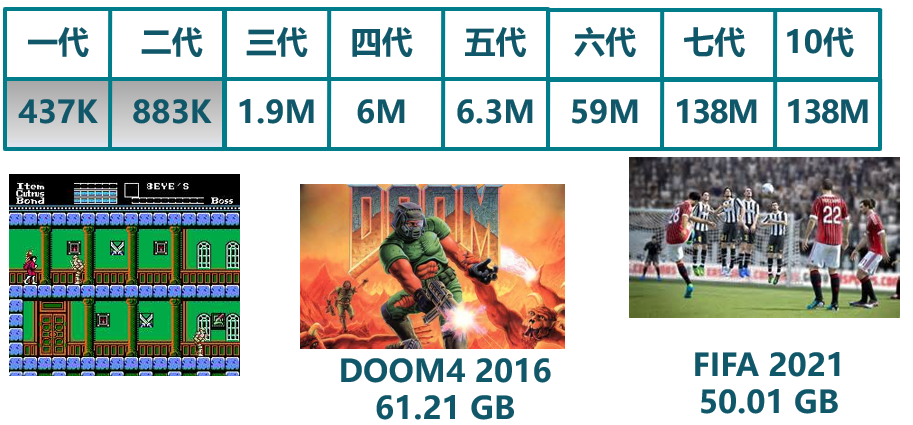

The growth rate of the program size is much faster than that of the memory capacity

Ideal Memory: large capacity, fast, cheap, Non-Volatile

Basic idea of Virtual Memory

Challenge: The computer system often suffers from lacking memory
Idea: Use external storage

• Function Overlay
  • The application is manually swapped into and out from memory in units of function/module
    -Program Swapping
  • The OS automatically swaps content into and out from memory in units of programs
• Virtual Memory
  • The OS automatically swaps content in and out of memory in units of page

Virtual Memory = Memory + External Storage

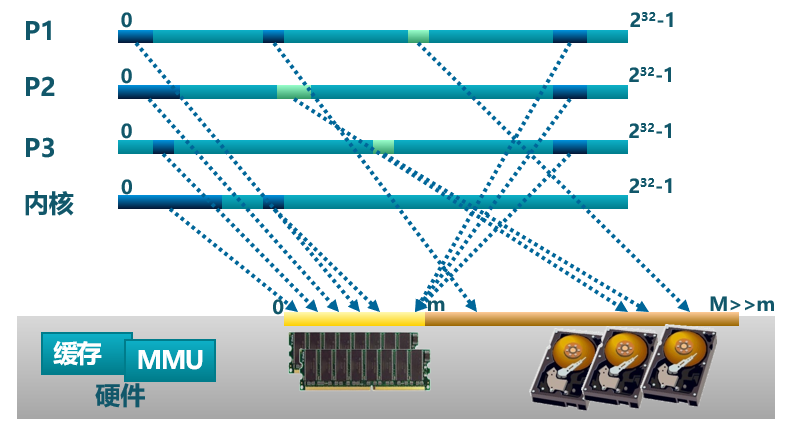

Address space

The Address Space is the abstraction of virtual memory by the OS.

Outline

1. The demand for Virtual Memory Technology

2. Memory Overlay

3. Memory Swapping
4. Basic Concepts of Virtual Memory
5. Page Fault

Memory Overlay

• Goal
  • Programmers manually manage memory to run large programs in relatively small memory
• Basic idea
  • Functions or modules executed at different time periods share a limited memory space

Fundamentals of overlay

Overlay refers to dividing a program into some segments with relatively independent functions. Segments that are not required to be loaded into memory at the same time can form a group (named an overlay segment), which will share same area of main memory.

• Necessary parts of (Frequently used) code and data will be resident in memory
• Optional parts (not frequently used) are placed in other program modules, and only loaded into memory when needed
• If there is no caller & callee relationship between two modules, they can share the same memory area

Example of Memory Overlay

Shortages of Memory Overlay

• Increase Programming Difficulty

  • Programmers are required to divide functional modules and determine the overlay relationship between modules
  • Increase programming complexity;

• Increase Execution Time

  • Load overlay module from external storage
  • Sacrifice execution time to save space

  The overlay system of Turbo Pascal supports programmer-controlled overlay technology

Outline

1. The demand for Virtual Memory Technology
2. Memory Overlay

3. Memory Swapping

4. Basic Concepts of Virtual Memory
5. Page Fault

Memory Swapping

• Basic idea
     - The OS automatically swaps contents into and out from of memory in units of programs
• Method
     - Swap out: Save the content of an executing program's address space to the external storage
     - Swap in: Load the content of a program's address space from the external storage into the memory

Problems in Memory Swapping

• Swapping time: When to swap?
     - Swapping happens only  when memory space is already or possibly not enough

• Program Relocation: Should it be placed in the same place when swapping happens?
     - Not necessary in the same place, but we need a mapping mechanism to address & execute of the program correctly

Problems in Memory Swapping

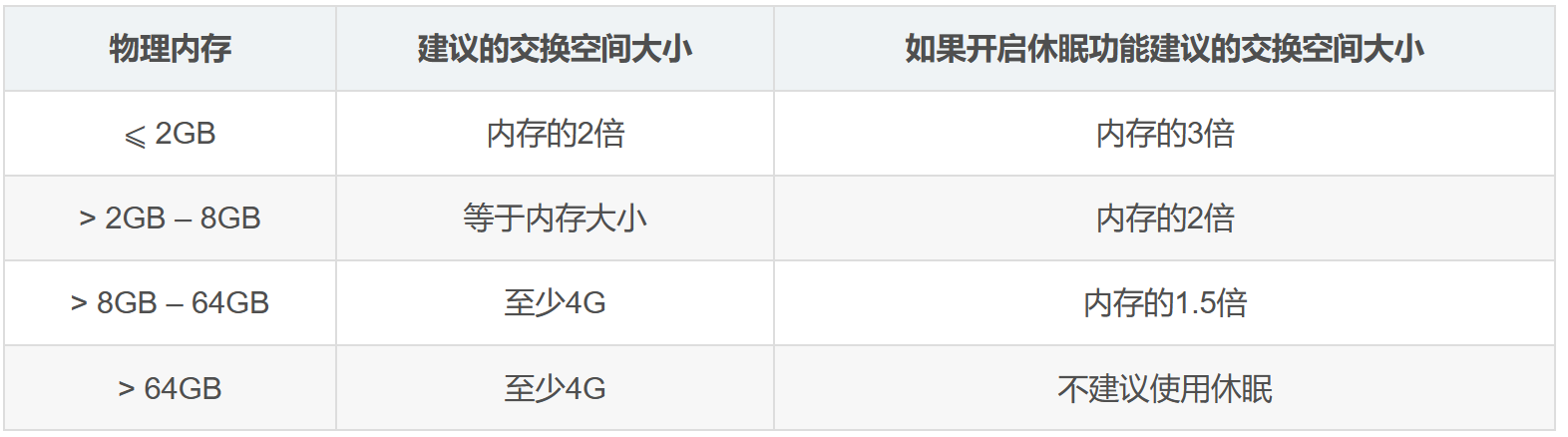

• Swap space size: empirical value

Comparison of Memory Overlay and Swapping

• Program Overlay
  • Occurs between modules/functions that are not on the same control flow during a certain period of time
  • In units of modules/functions
  • Programmers must provide the logical overlay structure between modules/functions manually
• Memory Swapping
  • Occurs between running programs
  • In units of running programs
  • No need for logical overlay structures between modules

Outline

1. The demand for Virtual Memory Technology
2. Memory Overlay
3. Memory Swapping

4. Basic Concepts of Virtual Memory

5. Page Fault

Definition of Virtual Memory

• Definition
  • Virtual Memory = Main Memory + External Storage
• Ideas
  • The OS moves infrequently-used parts of the memory to the external storage temporarily, and loads the data needed by the processor from external storage into memory
• Prerequisites
  • Programs follow the principle of locality

Principle of Locality

Locality : During a short period of the program's execution process, the address and operands of the instruction executed are respectively limited to a small area

• Temporal locality: If at one point a particular memory location is visited, then it is likely that the same location will be visited again in the near future (This applies to both instructions and data).
• Spatial locality: If a particular memory location is visited at a particular time, then it is likely that nearby memory locations will be visited in the near future (This applies to both instructions and data).
• Branch locality: If we execute a jump instruction twice, the program is likely to jump to the same memory address.

Significance of locality: If most programs have significant locality, virtual memory can be realized and achieve satisfactory results

Ideas and Rules of Virtual Memory

• Idea: Temporarily move some infrequently-used memory blocks to external storage
• Rule:
  • When loading the program: only load the pages or segments required by the current instruction execution into the memory
  • When the instruction or data needed by the instruction execution is not in the memory (page fault / segment fault): the processor notifies the OS to load the corresponding page or segment into the memory
  • OS saves the temporarily unused pages or segments to external storage
• Implementation:
  • Paging
  • Segmentation

Basic Features of Virtual Memory

• Discontinuity
  • Physical memory allocation is discontiguous
  • The use of virtual address space is discontiguous
• Large user address space
  • The virtual memory provided to the user can be larger than the actual physical memory
• Partial exchange
  • Virtual memory only swaps some parts of the virtual address space into / out from memory

Underlying Support of Virtual Memory

• Hardware (MMU/TLB/PageTable)
  • Hardware address translation mechanism, hardware exception in paging or segmentation memory management
• Software (OS)
  • Create page table or segment table in memory
  • Manage swap-in and swap-out of pages or segments between main memory and external storage

Virtual Paging Management

On the basis of paging management, add demand paging and page replacement

• Basic idea
  • When a user program is loaded into memory, only a portion of its pages are loaded for program execution.
  • As the user program runs, if it needs code or data that is not in memory, it generates a page fault exception and send it to the OS.
  • When the OS handles a page fault exception, it loads the corresponding page from external storage into memory, allowing the user program to continue running.
  • When memory becomes scarce, the OS swaps out some pages from memory to external storage.

Virtual Paging Memory Management

On the basis of paging management, add demand paging and page replacement

• Demand paging: The data will be transferred from external storage to memory when the processor needs to access it.
• Page replacement: Swap out infrequently-used pages and swap in frequently-used pages
• Page fault handling: Software and hardware cooperation

Outline

1. The demand for Virtual Memory Technology
2. Memory Overlay
3. Memory Swapping
4. Basic Concepts of Virtual Memory

5. Page Fault

Workflow of page fault handling

1. The CPU issues a memory access request, then matches the physical address in the TLB according to its virtual address. It will get a miss and read the page table;
2. Since the presence bit of the page table entry is 0, the CPU generates a page fault;
3. The OS finds the page content stored in the external storage;

Workflow of page fault handling

4-1. If there is a free physical page frame, swap the page content in the external memory into an idle physical page frame;
4-2. If there is no free physical page frame, release/swap out a physical page frame to the external storage through the page replacement algorithm, and then swap the page content from the external storage into the previous page frame;

Workflow of page fault handling

5. Modify the page table entry, establish the mapping from the virtual page to the physical page, and set presence bit to 1;
6. The OS returns to the application and asks the processor to re-execute the instruction that caused the page fault.

• Where are unmapped pages kept? How to find this page? *

Where to store unmapped pages?

• Swap space (disk/file)
  • Store unmapped pages in a special format
• Files on disk(code or data)


Swap Space of External Storage

Where to save the addresses of the pages stored in external storage?

• Swap space
  • Disk partition: typically sector address
  • Save the page address of external storage in the page table entry whose presence bit is 0

Disk Files of External Storage

Where to save the addresses of the pages stored in external storage?

• Files on disk (code or data)
  • The logical segment representation in the address space has a corresponding file position
    • e.g., MemorySet::MapArea
  • Code Segment: executable binaries
  • Dynamically loaded program segments of shared libraries: Library files that are dynamically called

Performance of Virtual Memory

Effective memory access time(EAT)

• EAT = Memory access time $*$ (1-p) + Page fault handling time
• Page fault handling time = Disk access time*p(1+q)
  • p: page fault rate;
  • q: writeback probability

• Example
  • Memory access time: 10 ns; Disk access time: 5 ms
  • EAT = 10(1–p) + 5,000,000p(1+q)
