Lecture 7 Process Management and Single Processor Scheduling

Section 1 Process Management



Yong Xiang, Yu Chen, Guoliang Li, Ju Ren

Spring 2023

Outline

1. Basic concepts of process

  • Demand for process management
  • Concept of process
  • Process and task
  1. Process management
  2. Thoughts on fork()

Demand for process management

  • Background

    • Hardware is becoming increasingly powerful
      • Faster CPU with MMU/TLB/Cache
      • Larger memory and external storage
      • More diverse peripherals
    • Developers hope to have more dynamic interaction and control capabilities on computers
    • Users need more convenient interaction capabilities

  • Objective

    • Improve development and execution efficiency

Demand for process management

  • The interface between the OS and the user for interaction
  • Command line interface (CLI)
  • Users directly enters commands directly through the keyboard
    -Shell
  • Graphical user interface (GUI)
  • Users input commands through the mouse/window or by other means

Demand for process management

  • User needs to dynamically manage and control the execution of applications
  • During the application execution process, the user actively sends requests to the OS through the interface to create and execute new applications, pause or stop the execution of applications, and so on

Purpose of introducing the concept of process

  • Clearly depict the dynamic internal laws of program execution in the OS
  • Effectively manage and schedule the execution of multiple programs and the usage of resources

The abstraction provided by the process to the application program

  • From the application's view, the key abstractions provided by the process to the application program include
    • Independent logical control flow: it appears as if the program has exclusive use of the processor
    • Private address space: It appears as if the program has exclusive use of the memory system

What is a process from an implementation perspective

From an implementation perspective, a process is a data structure related to process management established by the OS during program execution, as well as the dynamic operating process on the data structure

What is a process from a resource perspective

  • From a resource perspective, a process is a collection of resources used during program execution
    • Shared resources vs exclusive resources
    • Processor - time
    • Memory - address space
    • File - I/O
      ...

What is a process?

  • Simple definition
    • The execution process of a program
    • An instance of an executing program
  • Comprehensive definition: a dynamic execution and resource usage process of a program with certain independent functions on a specific data set
    • Executes program logic and reads/writes data
    • Creates and executes new processes
    • Uses shared resources such as files

Task and process

Comparison in terms of resource usage and execution process

Similarities:

  • From the user's perspective, task and process both represent a running program
  • From the OS's perspective, task and process both represent the execution process of a program
  • From the perspective of resource usage
    • Both can be interrupted by the OS and occupy CPU resources in a time-sharing way via switching
    • Both require address space to place code and data

Task and Process

Comparison in terms of resource usage and execution process

Similarities:

  • From the perspective of execution process, both have a lifecycle that runs from start to finish
    • Task lifecycle --> Process lifecycle
    • Task's three-state model --> Process's three-state model
    • Task switching --> Process switching
    • Task context --> Process context

Task and Process

Comparison in terms of resource usage and execution process

Differences:

  • Task is the primary stage of process and does not have the following functionalities:
    • Process can create child processes and overwrite existing program content with new program content during execution
    • Process becomes the carrier for dynamically requesting, using, and releasing various resources during program execution

The dynamic functionality of processes enables more flexible program execution

Process is an important concept in computer science

Process is one of the most profound and successful concepts in computer science (from CSAPP)

Outline

  1. Basic concepts of process

2. Process management

  • System calls for process management
  • Process control block (PCB)
  • Process creation and program loading
  • Process wait and exit
  1. Thoughts on fork()

Background of system calls for process management

  • How can applications easily and dynamically execute other applications?
    • process_id = execute(app_name)
  • How can applications know if the other application they launched has exited?
    • The launched applications use exit(status)?
    • The father application uses wait(process_id)?

Therefore, various OSs (UNIX/Windows, etc.) have designed various system calls for process management similar to the ones mentioned above

System calls for process management

system call name meaning
int fork() Create a process and return the PID of the child process.
int exec(char *file) Load a file and execute it; return only on error.
int exit(int status) Terminate itself; report status to the parent process executing waitpid().
int waitpid(int pid, int *status) Wait for pid child process to exit, get its exit status *status.
int getpid() Get the PID of the current process.

Example of process management applications: getpid()

//usr/src/bin/hello_world.rs
pub fn main() -> i32 {
// show own PID
println!("pid {}: Hello world from user mode program!", getpid());
0 // exit code returned
}

Example of process management applications: fork() and exec()

//usr/src/bin/forkexec.rs
pub fn main() -> i32 {
println!("pid {}: parent start forking ...", getpid());
let pid = fork(); // create child process
if pid == 0 {
// child process
println!("pid {}: forked child start executing hello_world app ... ", getpid());
exec("hello_world"); // execute hello_world program
100
} else {
// parent process
let mut exit_code: i32 = 0;
println!("pid {}: ready waiting child ...", getpid());
assert_eq!(pid, wait(&mut exit_code)); //Confirm the waiting child process PID
assert_eq!(exit_code, 0); //Confirm that the exit code is 0
        println!("pid {}: got child info:: pid {}, exit code: {}", getpid() , pid, exit_code);
        0
    }
}

Example of process management applications: fork() and exec()

Execution result

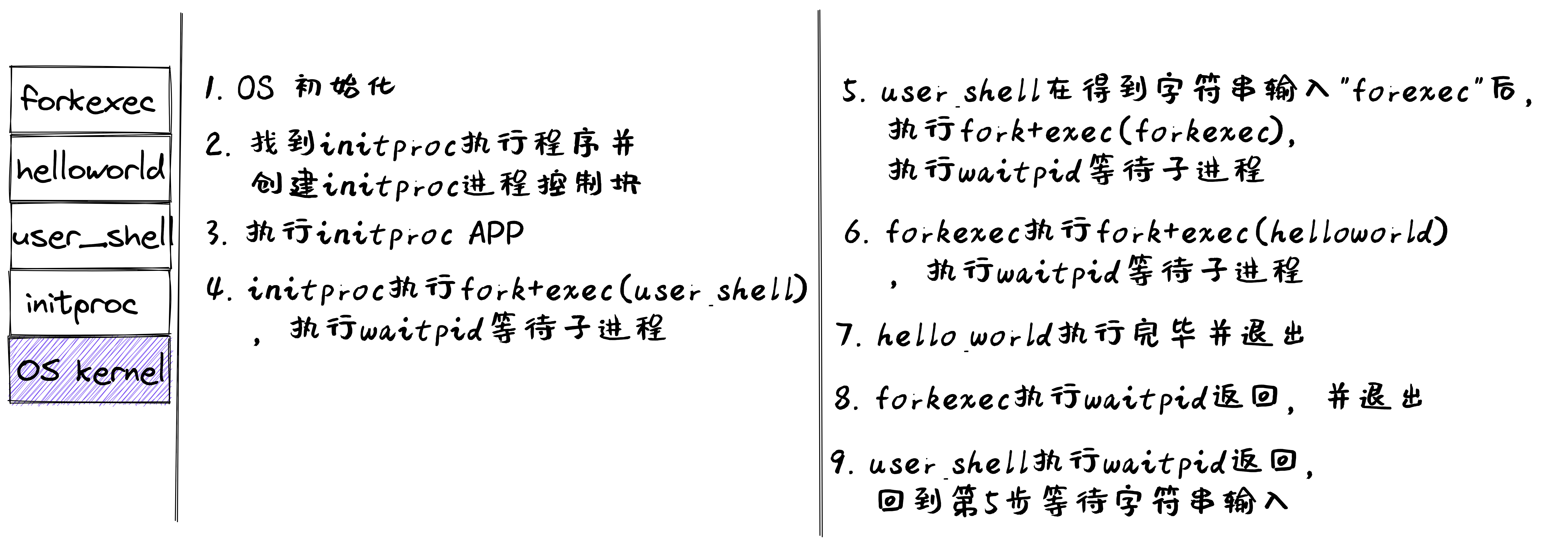

Rust user shell
>> forkexec
pid 2: parent start forking ...
pid 2: ready waiting child ...
pid 3: forked child start execing hello_world app ...
pid 3: Hello world from user mode program!
pid 2:  got child info:: pid 3, exit code: 0
Shell: Process 2 exited with code 0
>> QEMU: Terminated

Outline

  1. Basic concept of process
  2. Process management
  • System calls for process management

  • Process control block (PCB)

  • Process creation and program loading
  • Process wait and exit
  1. Thoughts on fork()

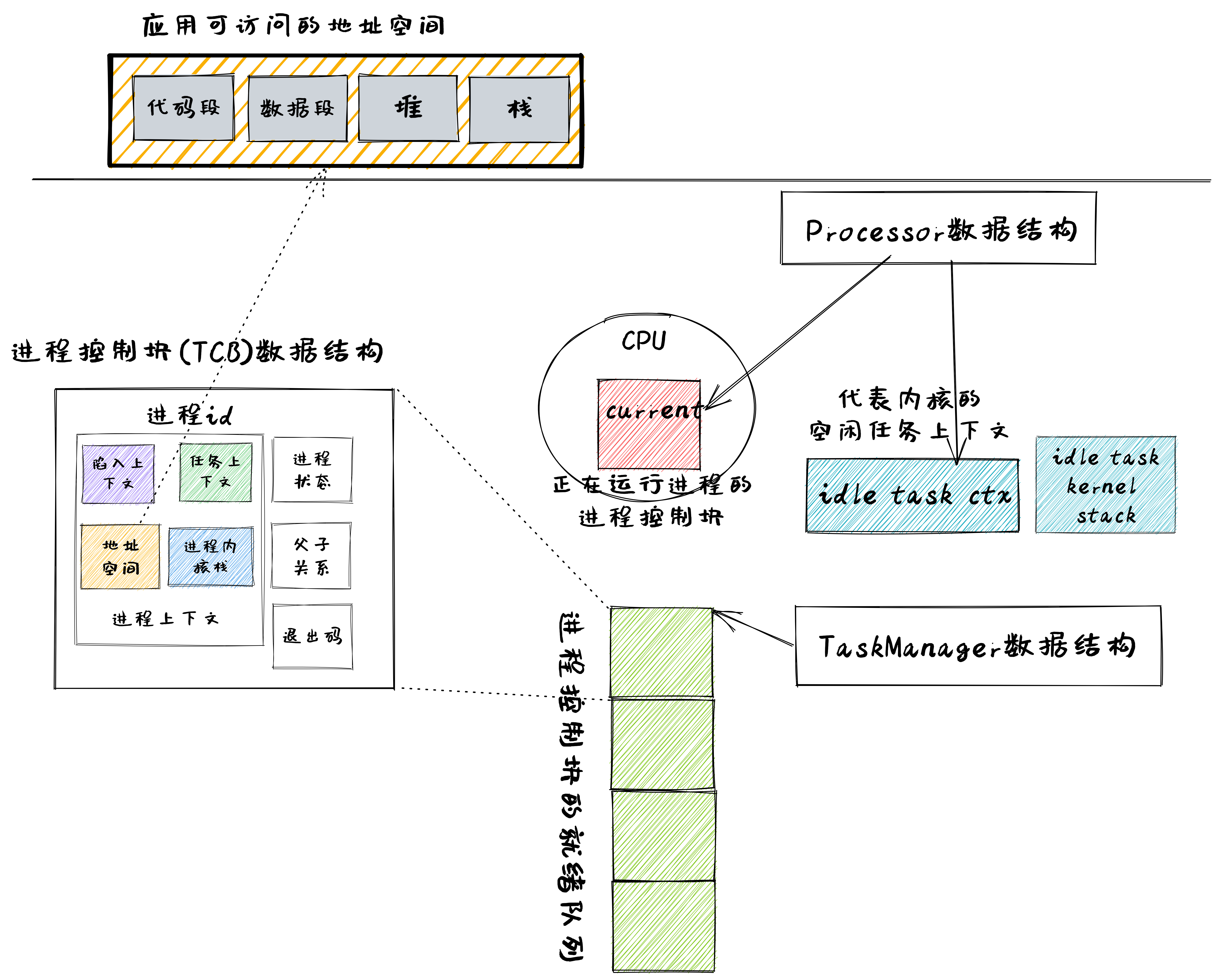

Process control block (PCB)

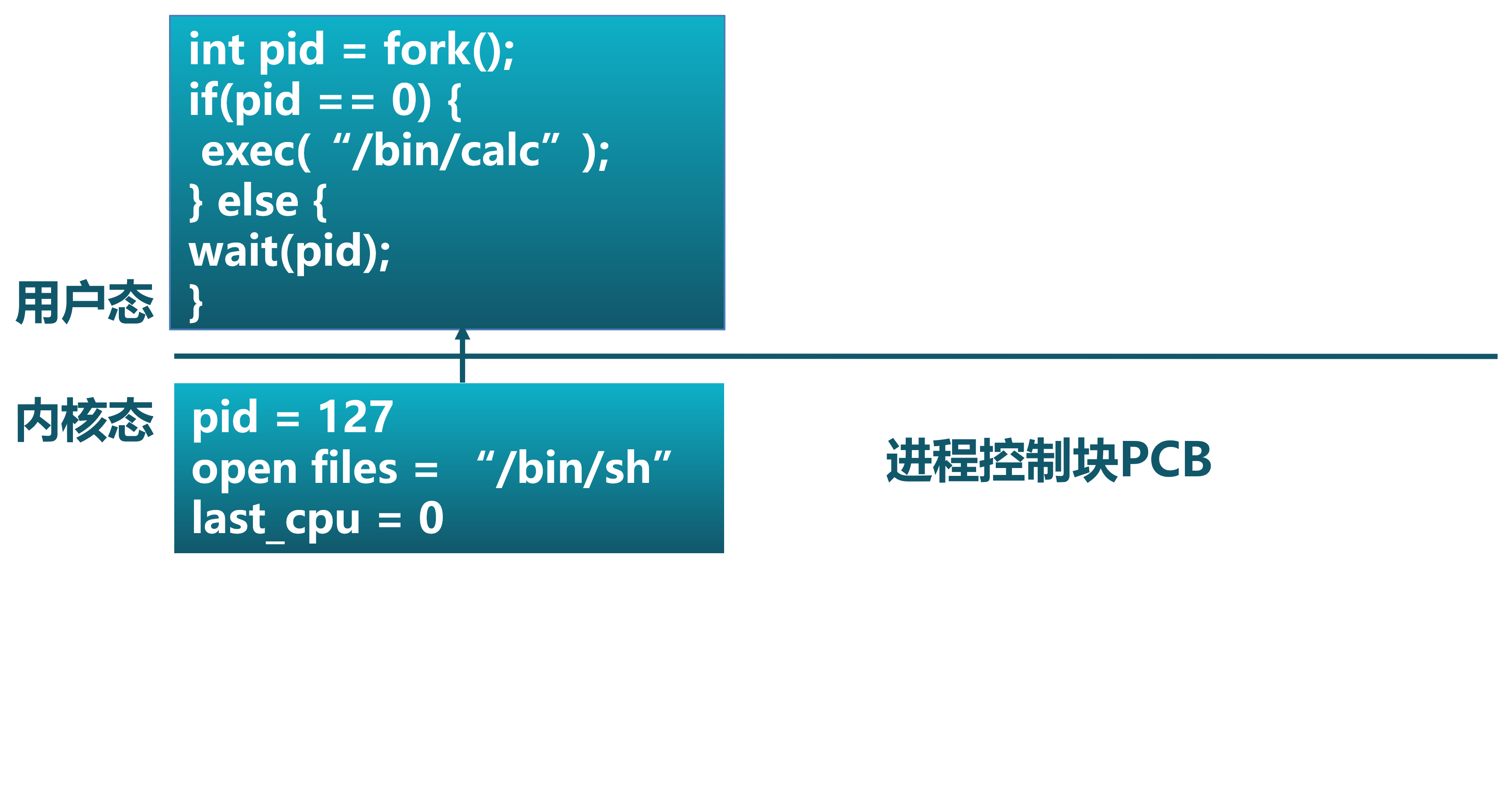

Shell executes user input commands

Process control block in shell execution


Process switching

  • The process of process switching

    • Pause the currently running process and change its state from running to another state
    • Schedule another process and change its state from ready to running

  • The requirements for process switching:

    • Save the process context before switching
    • Restore the process context after switching

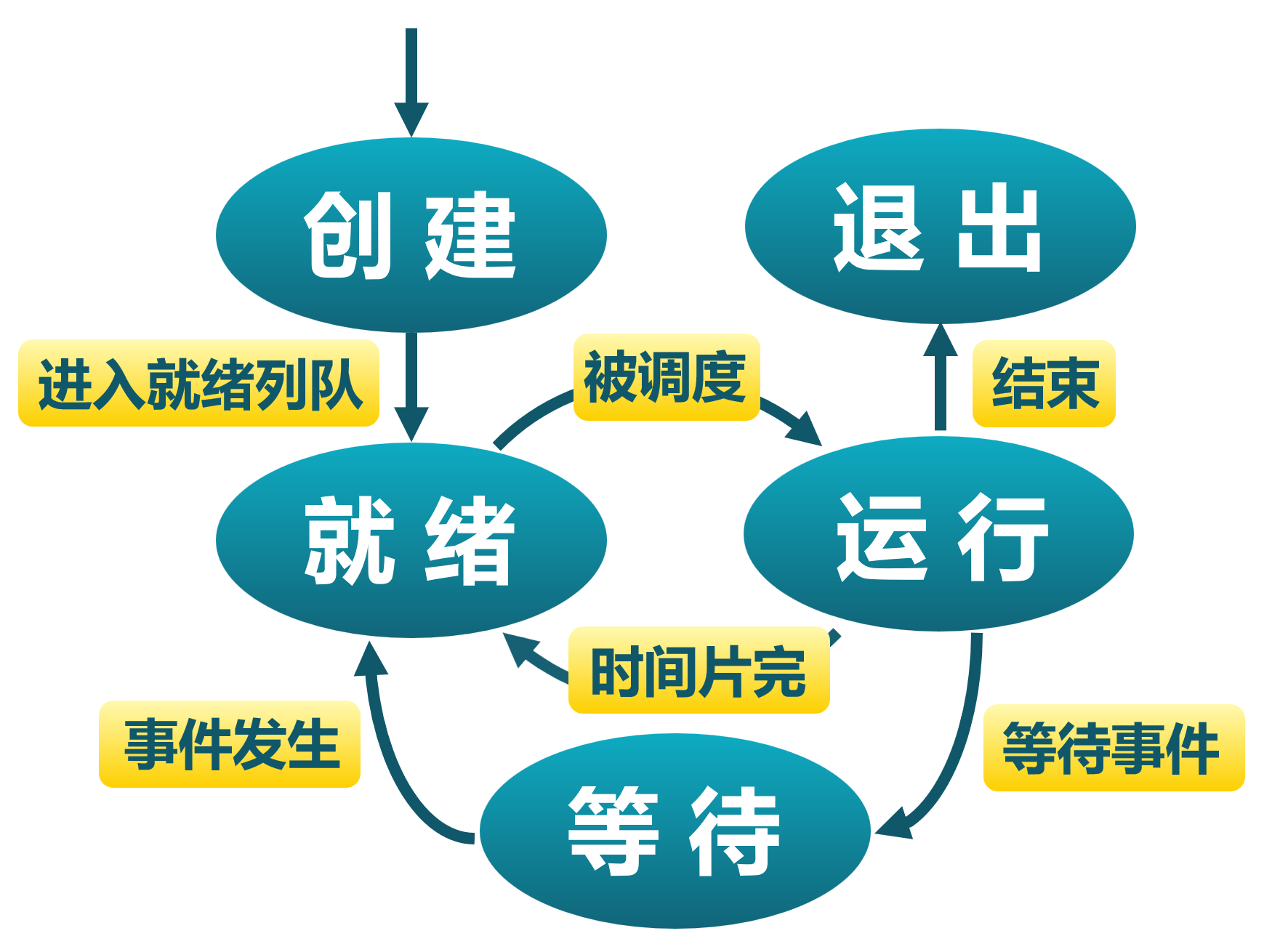

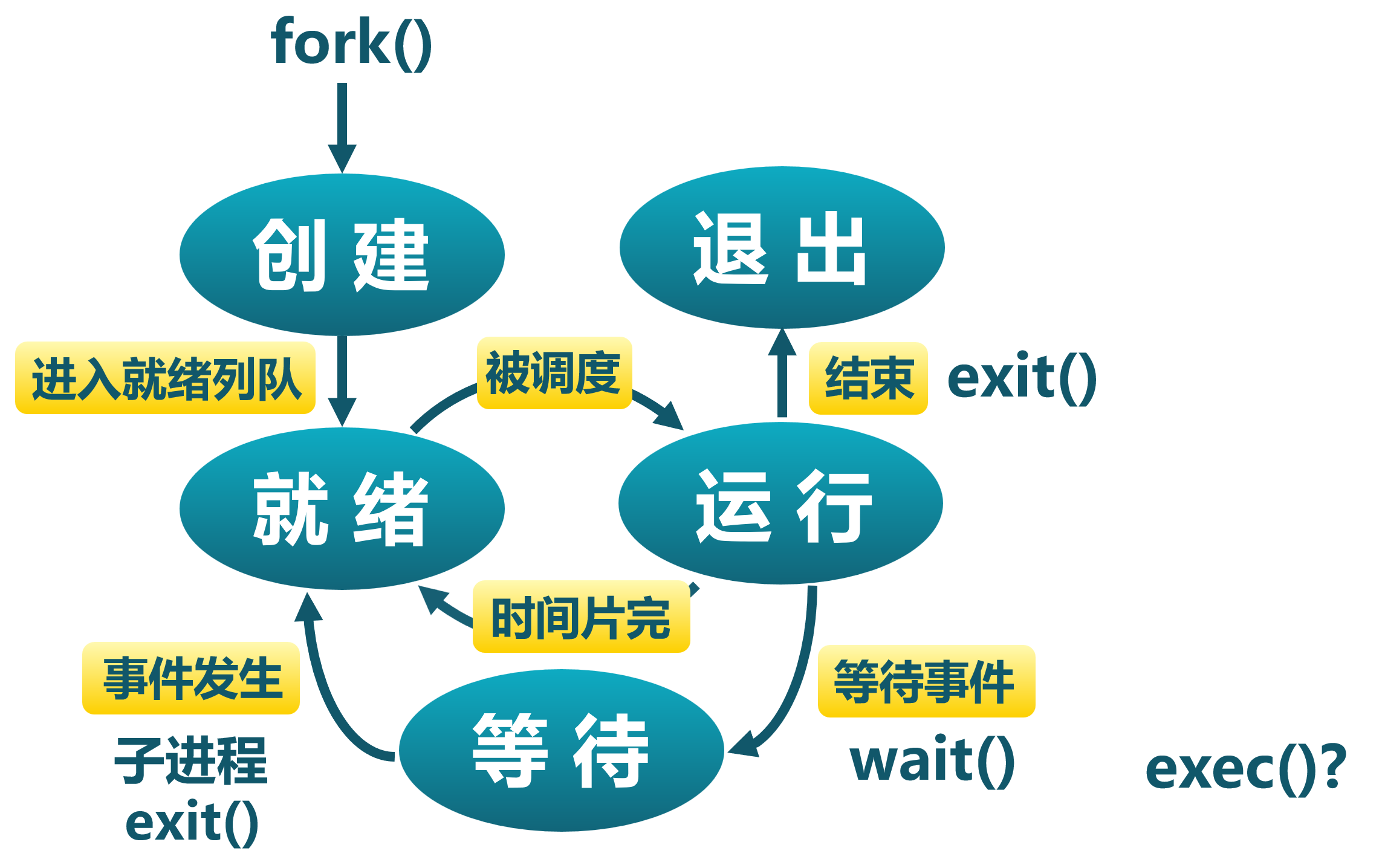

Process lifecycle

  • Process switching
    • Pause the currently running process and change its state from running to another state
    • Schedule another process and change its state from ready to running
  • Information about the process lifecycle
    • Registers (PC, SP, …)
    • CPU status
    • Memory address space

Outline

  1. Basic concepts of process
  2. Process management
  • System calls for process management
  • Process control block (PCB)

  • Process creation and program loading

  • Process wait and exit
  1. Thoughts on fork()

Process creation API of windows: CreateProcess(...)

  • Close all file descriptors in the child process during creation
  • CreateProcess(filename, CLOSE_FD)
  • Change the environment of the child process during creation
  • CreateProcess(filename, CLOSE_FD, new_envp)

Process creation/loading

  • System calls of process creation/loading in Unix: fork/exec
  • fork() creates a new process by duplicating the calling process
  • parent (old PID), child (new PID)
  • exec() overwrites the current process with a new program, but PID will not change

Example of creating a process with fork and exec

int pid = fork(); 		// create child process
if(pid == 0) { 			// child process continues here
// Do anything (unmap memory, close net connections…)
exec("program", argc, argv0, argv1, ...);
}
  • fork() creates an inherited child process
  • Copy all variables and memory of the parent process
  • Copy all CPU registers of the parent process (except one register, a0, i.e., the return value of fork())

Example of creating a process with fork and exec

int pid = fork(); 		// create child process
if(pid == 0) { 			// child process continues here
// Do anything (unmap memory, close net connections…)
exec("program", argc, argv0, argv1, ...);
}
  • Return value of fork()
  • fork() returns 0 in the child process
  • fork() returns the process ID (PID) of the child process in the parent process
  • The return value of fork() can be conveniently used for subsequent operations. The child process can use getpid() function to get its own PID

Execution process of process creation fork()

  • For the child process, fork() is a copy process of the parent process's address space

Example of program loading and execution

  • The system call exec() loads a new program to replace the currently running process (Is there any problem with the code???)
main()
…
int pid = fork(); 			// create child process
if (pid == 0) { 			// child process continues here
exec_status = exec("calc", argc, argv0, argv1, ...);
printf("Why would I execute?"); // Can this line of code be executed???
} else { 				// parent process continues here
printf("Whose your daddy?");
…
child_status = wait(pid);
}

Example of program loading and execution

  • The system call exec( ) loads a new program to replace the currently running process
main()
…
int pid = fork(); 			// create child process
if (pid == 0) { 			// child process continues here
exec_status = exec("calc", argc, argv0, argv1, ...);
printf("Why would I execute?");
} else { 				// parent process continues here
printf("Whose your daddy?");
…
child_status = wait(pid);
}
if (pid < 0) { /* error occurred */

Process of program loading and execution

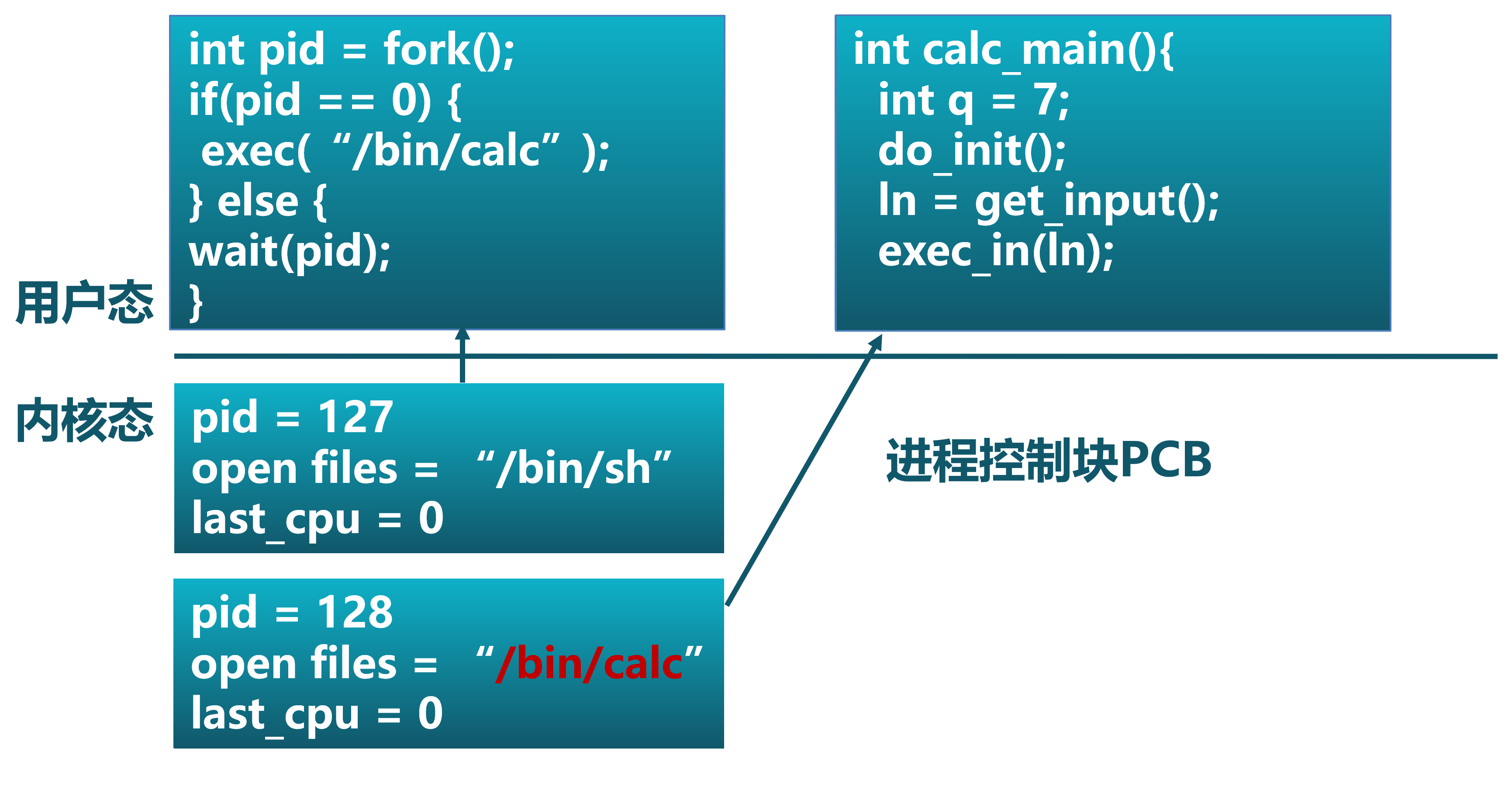

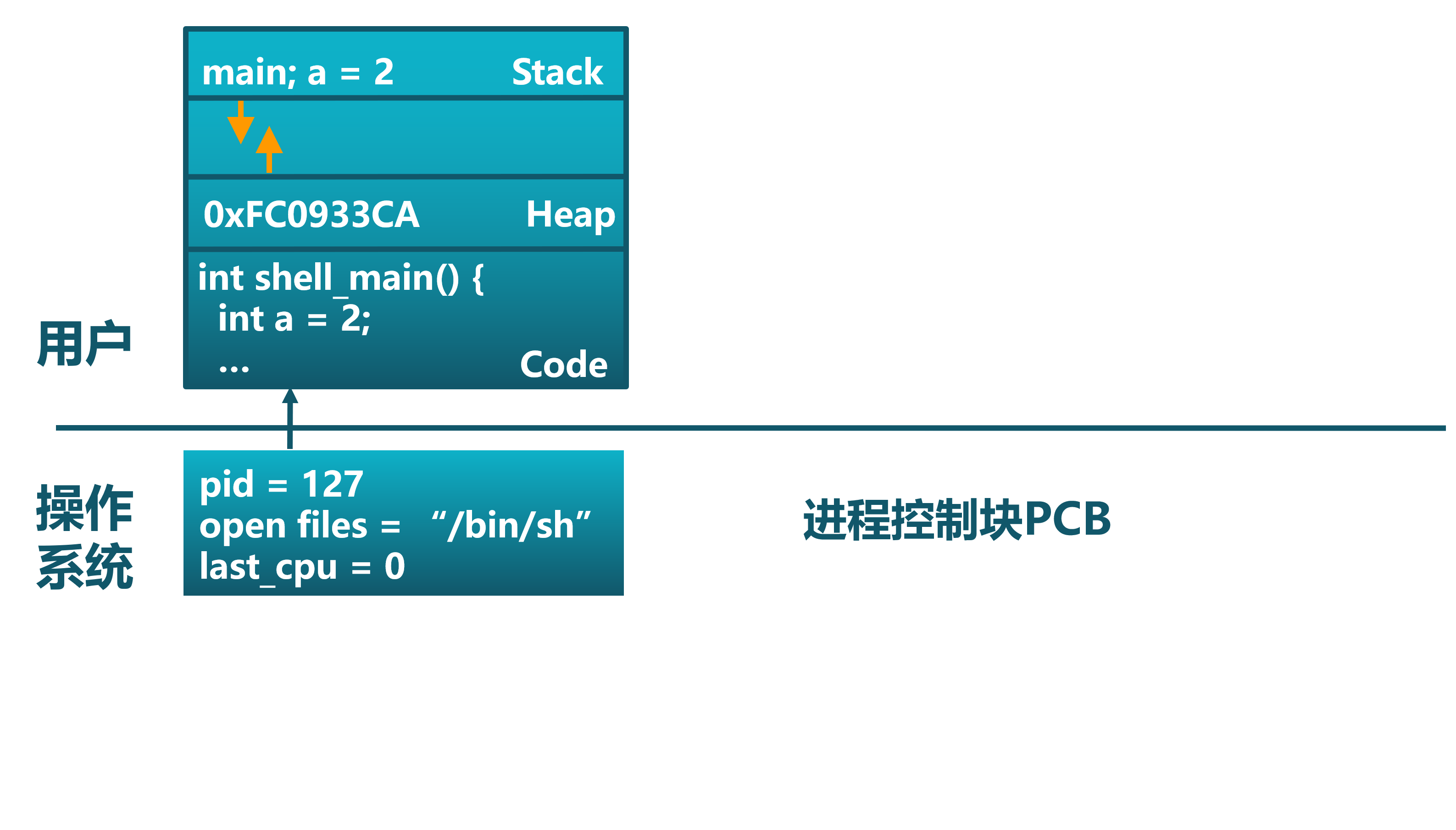

Load the calculator after calling fork() in the shell

Process of program loading and execution

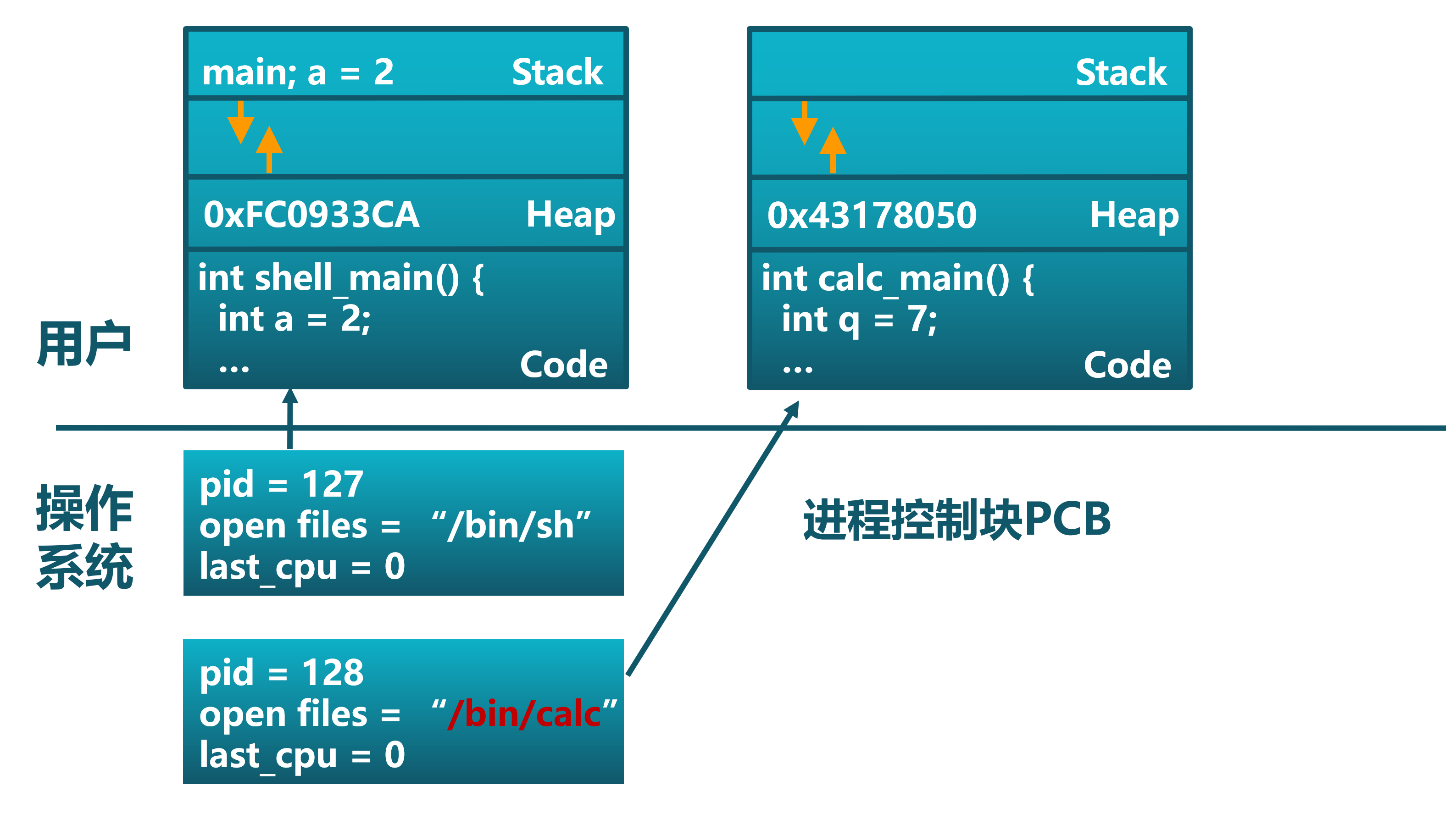

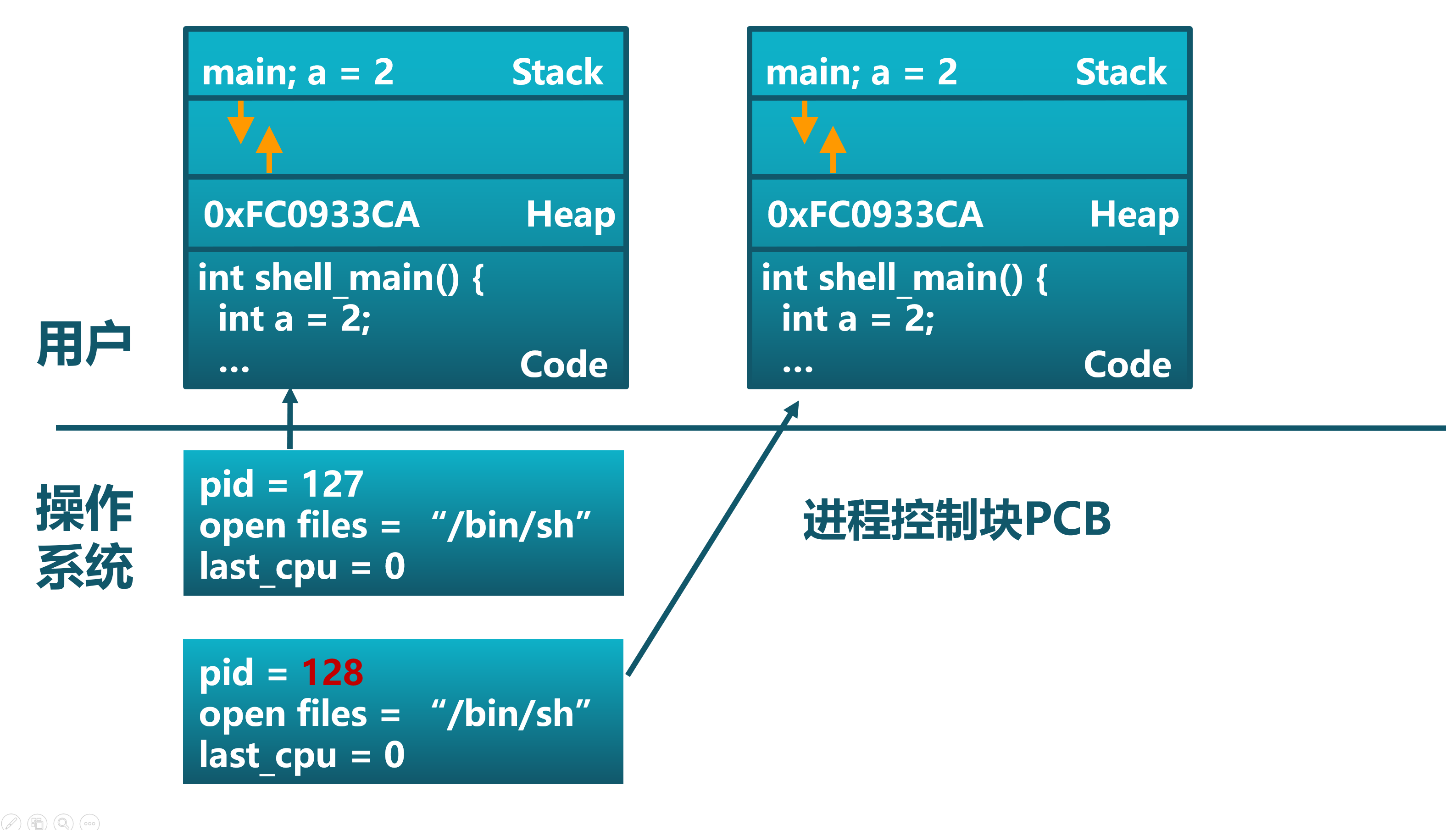

Load the calculator after calling fork() in the shell

Process of program loading and execution

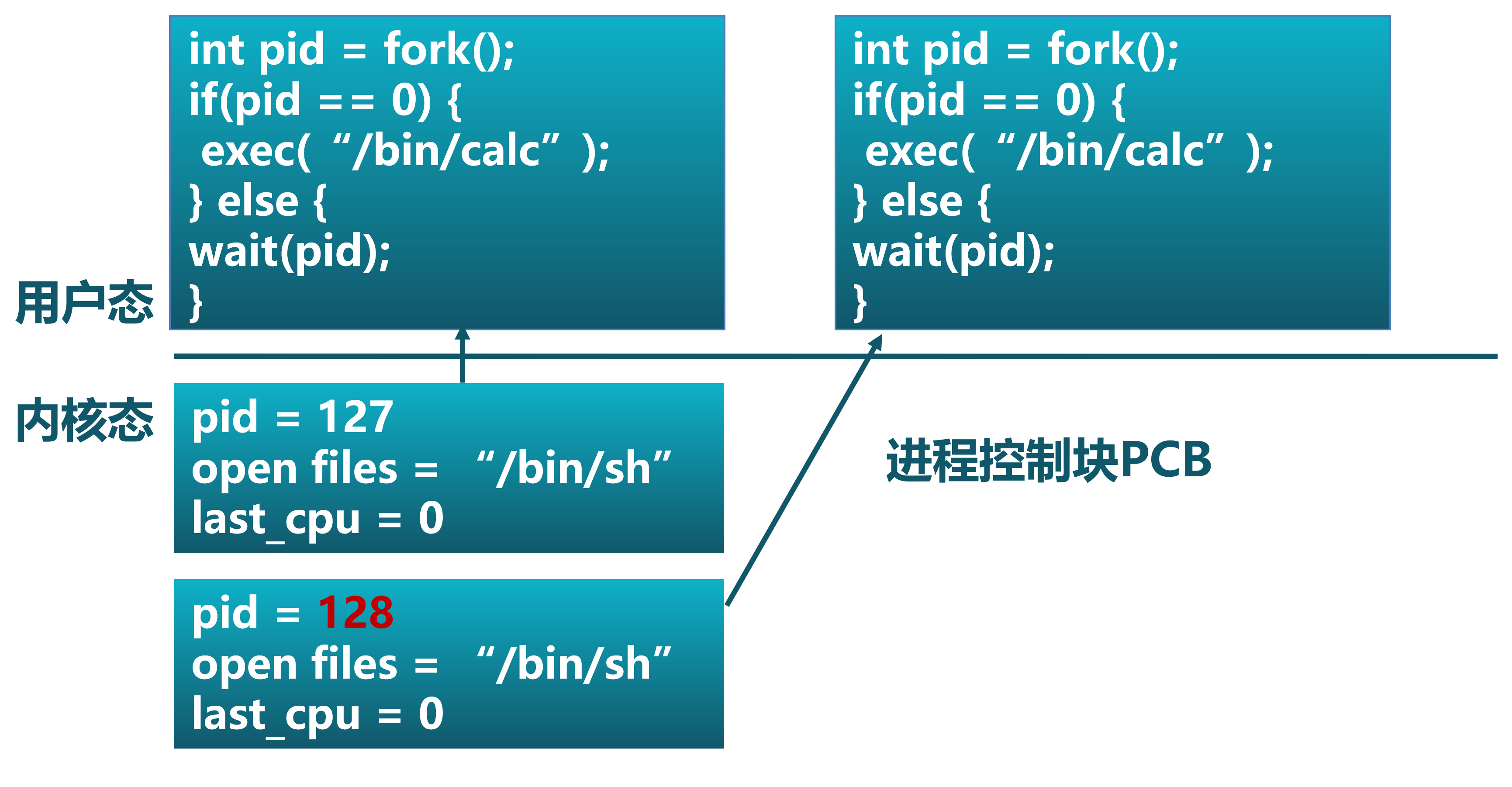

Load the calculator after calling fork() in the shell

Process of program loading and execution

Load the calculator after calling fork() in the shell

Process of program loading and execution

Load the calculator after calling fork() in the shell

Process of program loading and execution

Load the calculator after calling fork() in the shell

Example of process management application：fork()

int  main()
{
     pid_t  pid;
      int  i;

      for  (i=0;  i<LOOP;  i++)
      {
           /* fork  another  process  */
           pid = fork();
           if  (pid < 0) { /*error  occurred  */
                fprintf(stderr, “Fork Failed”);
                exit(-1);
           }
           else if (pid == 0) { /* child process */
                fprintf(stdout,  “i=%d,  pid=%d,  parent  pid=%d\n”,I,
                             getpid() ,getppid());
           }
}
wait(NULL);
exit(0);
}

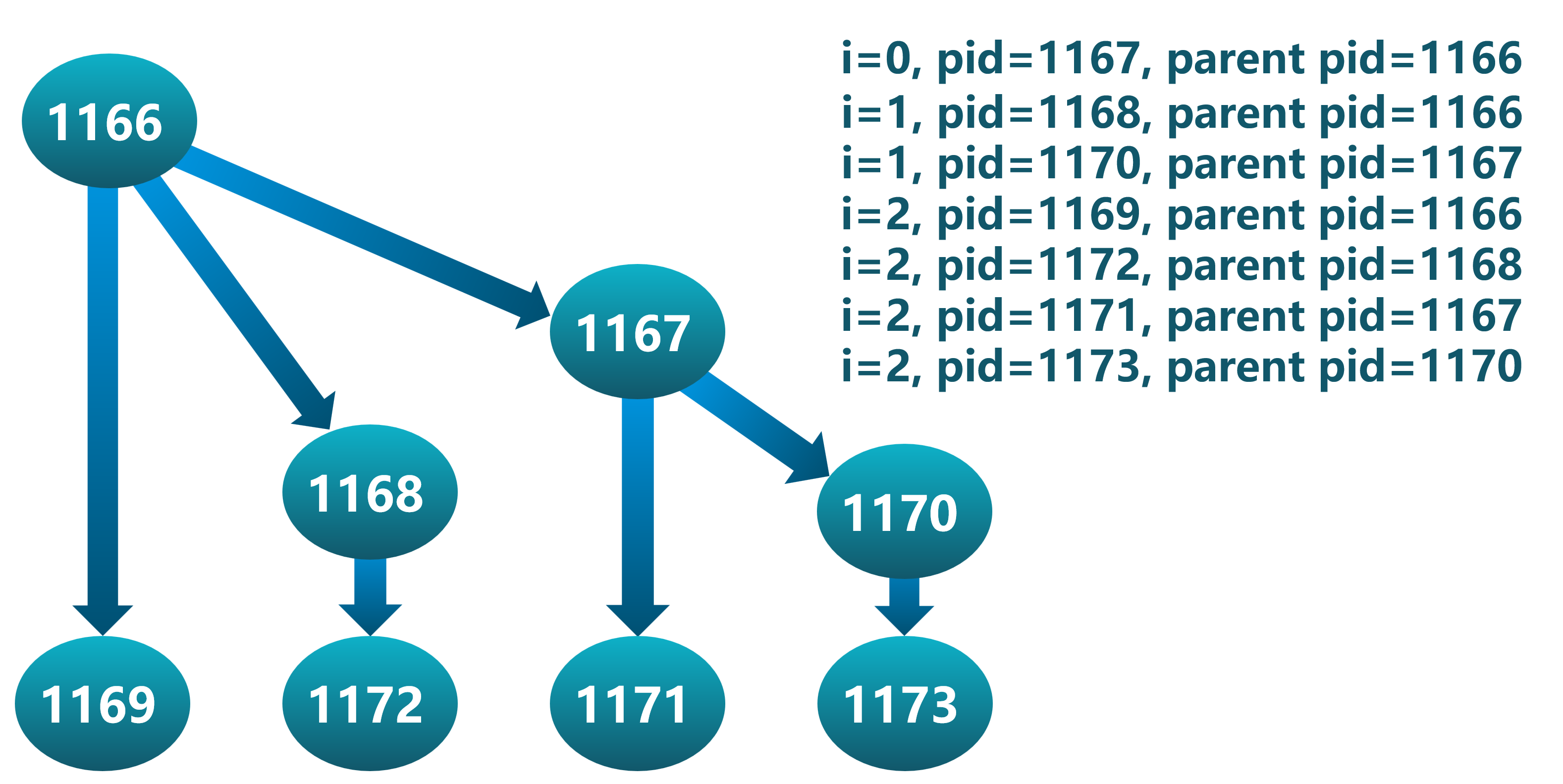

Example of process management application: fork()

Outline

  1. Basic concept of process
  2. Process management
  • System calls for process management
  • Process control block (PCB)
  • Process creation and program loading

  • Process wait and exit

  1. Thoughts on fork()

Parent process waits for child process

  • The system call wait() is used by the parent process to wait for the termination of the child process
    • When the child process exits, it returns a value to the parent process through the system call exit()
    • The parent process accepts and processes the return value using wait()
  • Functionalities of wait()
    • When the child process is alive, the parent process enters the waiting state and waits for the return result of the child process
    • When the child process calls exit(), wake up the parent process and use the return value of exit() as the return value of wait() in the parent process

Zombie process and orphan process

  • Zombie process: A child process whose PCB has not been reclaimed by the parent process through the sys_wait system call, even though it has already executed the sys_exit system call
    • How to handle Zombie process?
    • Using signal or fork twice
  • Orphan process: A child process whose parent process has exited before it
    • The root process is responsible for waiting and reclaiming orphan processes

Process exit exit()

  • When a process ends, it calls exit() to complete process resource reclamation
    • Functionalities of exit()
    • Use the call argument as the "result" of the process
    • Close all occupied resource, such as opened files
    • Release memory
    • Release most of the kernel data structures associated with the process
    • Preserve the value of the result and check whether the parent process is alive
      • If it is not, set the parent process to the root process
    • Enter the zombie/defunct state, waiting for the parent process to reclaim it

Other related system calls for process management

  • Priority control
    • nice() is used to specify the initial priority of a process
    • In Unix, the priority of a process will decay over time
  • Process debugging
    • ptrace() allows one process to control the execution of another process
    • Set breakpoints, view registers, etc
  • Timing
    • sleep() allows a process to wait in the timer's waiting queue for a specific amount of time

Relationship between process management and process status

System calls related to process management may affect the state of the process

Relationship between process management and process status

Outline

  1. Basic concept of process
  2. Process management

3. Thoughts on fork()

  • Overhead of fork()?
  • Rethinking fork

Overhead of fork()?

  • Implementation overhead of fork()
    • Allocate memory for the child process
    • Copy the memory and CPU registers of the parent process to the child process
    • The overhead is expensive!!

Overhead of fork()?

  • In 99% cases, we call exec() after fork()
    • Memory copying during the fork() operation is unnecessary --why?
    • The child process may close opened files and network connections --why?

Overhead of fork()?

  • When vfork() creates a process, it no longer creates the same memory image
    • Lightweight fork()
    • The child process should call exec() almost immediately
    • Now using Copy on Write (COW) technology

Rethinking fork

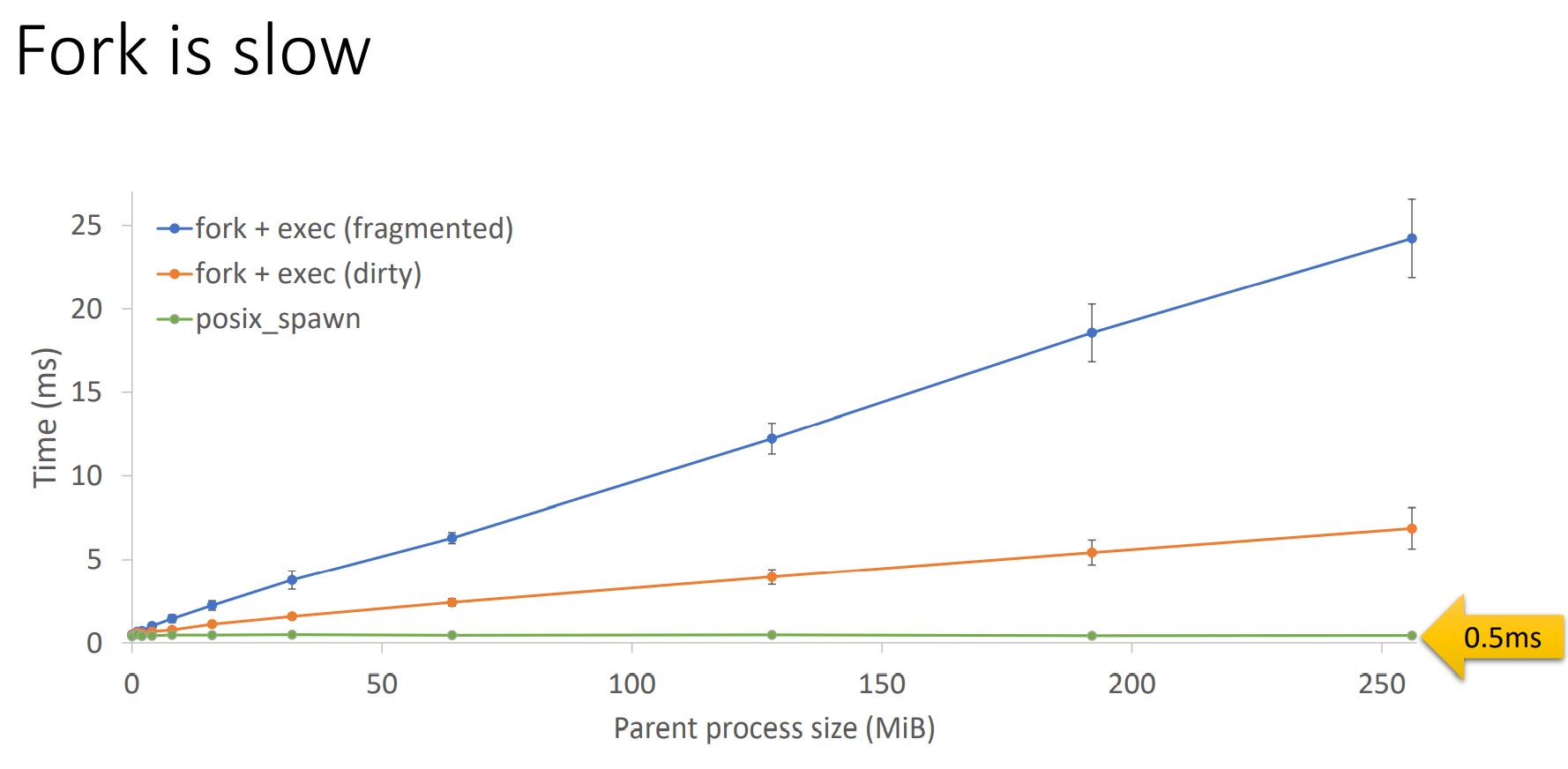

Andrew Baumann, etc., A fork() in the road, HotOS 2019

Rethinking fork

The fork system call is one of Unix's great ideas.
-- https://cs61.seas.harvard.edu/site/2018/WeensyOS/

  • It's simple: no parameters!
  • It's elegant: fork is orthogonal to exec
  • It eased concurrency

Rethinking fork

But!

  • Fork is no longer simple
    • Fork encourages memory overcommit
    • Fork is incompatible with a single address space
    • Fork is incompatible with heterogeneous hardware
    • Fork infects an entire system

Rethinking fork

Rethinking fork

Rethinking fork

Rethinking fork

For implementation expedience [Ritchie, 1979]

  • fork was 27 lines of PDP-7 assembly
    • One process resident at a time
    • Copy parent’s memory out to swap
    • Continue running child
  • exec didn’t exist – it was part of the shell
    • Would have been more work to combine them

Rethinking fork

Conclusions:

  • Fork is not an inspired design, but an accident of history
  • Only Unix implemented it this way
  • We may be stuck with fork for a long time to co me
  • But, let's not pretend that it's still a good idea today!

Please, stop teaching students that fork is good design

  • Begin with spawn
  • Teach fork, but include historical context

Summary

  1. Basic concepts of process
  2. Process management
  3. Thoughts on Fork()
  • Overhead of fork()?
  • Rethinking fork

https://www.infoq.cn/article/BYGiWI-fxHTNvSohEUNW When Unix was rewritten for the PDP-11 computer (which had memory translation hardware that allowed multiple processes to remain resident), it was already inefficient to copy a process's entire memory just to drop a process in exec. We suspect that in the early days of Unix, fork survived primarily because programs and memory were small (only eight 8 KiB pages on the PDP-11), memory access was fast relative to instruction execution, And it provides a reasonable abstraction. There are two important points here:
